Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Cartridge Block
- QAAMC20A315S

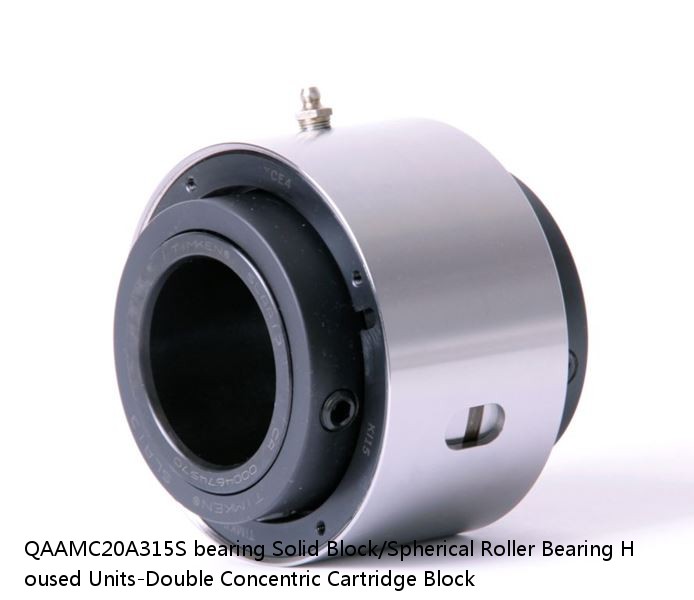

QAAMC20A315S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Cartridge Block
QAAMC20A315S PDF download| QAAMC20A315S interchange timken QAAMC20A315S | |
| QAAMC20A315S cross reference timken QAAMC20A315S | |
| QAAMC20A315S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAMC20A315S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 32 lb14.5 Kg |
| r(min): | 0883450024907 0883450024914 0883450024938 0883450024945 0883450024952 0883450024969 0883450024976 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-15/16 in |
| Size: | Imperial |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0047 in0.120 mm |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | 900 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAMC20A315SB QAAMC20A315SC QAAMC20A315SEB QAAMC20A315SEC QAAMC20A315SEM QAAMC20A315SEN QAAMC20A315SEO QAAMC20A315SET QAAMC20A315SM QAAMC20A315SN QAAMC20A315SO QAAMC20A315ST |
| Locking Style | Double Concentric |
| Weight | 32 lb14.5 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450024907 0883450024914 0883450024938 0883450024945 0883450024952 0883450024969 0883450024976 0883450024983 0883450194952 0883450195126 0883450272124 0883450272292 |
| Dimension A | 0.780 in19.80 mm |
| Dimension B | 1.28 in32.5 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D | 0.31 in7.9 mm |
| Dimension F | 8.1250 in206.40 mm |
| Dimension G | 4.140 in105.20 mm |
| Dimension L Exp | 5.13 in130.3 mm |
| Dimension L Fix | 5.05 in128.3 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension RAA | 0.89 in22.6 mm |
| Dimension SAA | 5.94 in150.9 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| UCIP315D1 | UCIP315D1 | M14x1.5 | 75 | 32.0 | UC315D1 | 25 |
| HAR006CDT | 30 | 0.0 | 0.0 | 32000 | 21000 | HAR006CDT |
| 7834CDB | 170 | 0.60 | 1.1 | 7834C | 1.87 | 4 400 |
| 33215/DF | 82.0000 | 4800 | 3200 | 68.000 | 600.000 | 436.000 |
| SE 510-608 + 22308 K + H 2308 | SE 510-608 | 60 | 114 | SE 510-608 + 22308 K + H 2308 | 90 | 22308 K |
| 6015NR | 75 | 0.5 | 1.1 | 6800 | 5700 | 2.41 |
| 7238ADB | Standard | 190 | 3.0 | 4.0 | 7238ADB | 1700 |
| 400130 | 400130 | 13.500 | 3.000 | 4.500 | 12.500 | 11.700 |
| QVVPN22V312S | 4.06 | 2.73 | 84 lb38.1 Kg | 0883450146128 0883450146272 0883450151627 0883450151771 0883450162784 0883450164009 0883450181839 08 | 0.0030 in0.076 mm | 3-3/4 in |
| ZKFLX07-18 | A-1/4-28UNF | ZKFLX07-18 | Medium-duty(X) | - | 1 1/8 | - |
