Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPF13A207S

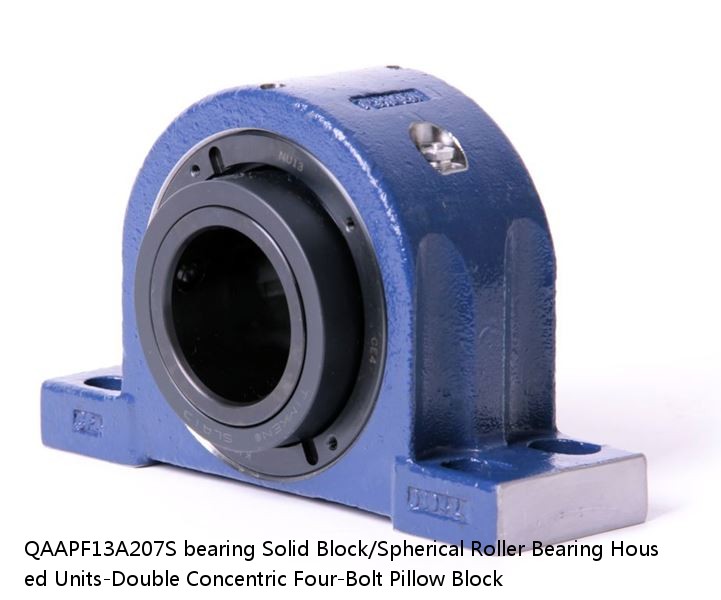

QAAPF13A207S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPF13A207S PDF download| QAAPF13A207S interchange timken QAAPF13A207S | |
| QAAPF13A207S cross reference timken QAAPF13A207S | |
| QAAPF13A207S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAPF13A207S |
| d: | 4.15 |
| D: | 2.79 |
| B: | 20 lb9.10 Kg |
| r(min): | 0.0015 in0.038 mm |
| r1(min): | 2-7/16 in |
| Width: | Imperial |
| Size: | 0.0016 in0.040 mm |
| Weight： | 0.0026 in0.065 mm |
| Bearing Number： | 3200 rpm |
| Housing Construction： | 1800 rpm |
| UPC Code： | 1500 rpm |
| Shaft Size Type： | Double Concentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 2-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAPF13A207SB QAAPF13A207SC QAAPF13A207SEB QAAPF13A207SEC QAAPF13A207SEM QAAPF13A207SEN QAAPF13A207SEO QAAPF13A207SET QAAPF13A207SM QAAPF13A207SN QAAPF13A207SO QAAPF13A207ST |
| Locking Style | Double Concentric |
| Weight | 20 lb9.10 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450026901 0883450026918 0883450026932 0883450026949 0883450026956 0883450026963 0883450026970 0883450026987 0883450189484 0883450189613 0883450266826 0883450266963 |
| Dimension A | 2.75 in69.9 mm |
| Dimension B | 5.8 in147.3 mm |
| Dimension C | 3.81 in96.8 mm |
| Dimension D Max | 7.63 in193.8 mm |
| Dimension D Min | 6.88 in174.8 mm |
| Dimension E | 1.75 in44.5 mm |
| Dimension F | 9.250 in235.00 mm |
| Dimension G | 3.0000 in76.200 mm |
| Dimension H | 0.98 in24.9 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.65 in92.7 mm |
| Dimension M | 2.15 in54.6 mm |
| Dimension RAA | 0.70 in17.8 mm |
| Dimension SAA | 4.3 in109.2 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| E/PF/TRB/1 11/16/ECC | 2.37 | 1.96 | 0.7 | 0.87 | 9.0 lb | 0883450504508 - Assembly is not orderable, contact Customer Service. |
| UCFX13 | A-PT1/8 | 65 | Medium duty (X) | UCFX13 | - | - |
| JM719149/13 | 35.000 | 95.000 | 3.00 | JM719149/13 | 3300 | 2400 |
| 3MMC214WI | 1.50 mm0.059 in | 1.50 mm0.059 in | 24800 rpm | 12400 rpm | 17.462500 mm11/16 in | METRIC |
| LY350124ANN1K##---+(22) | LY35AN | 22.0 | - | - | - | - |
| TAMW 5545 | 55 | TAMW 5545 | 270.00 | 55 | 67 | 79900 |
| NUP315EM | Standard | 75 | 2.0 | 2.0 | 2.1 | 2.1 |
| EE722111D/722185 | 6.6874 in169.860 mm | 722000 | 0.250 in6.40 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 18.5000 in469.900 mm |
| 54417XU | 2.0 | 2.1 | 85 | 54417XU | 1200 | 19.500 |
| 591/600 F | 800 | 560 | 49.0 | 3400.0 | 475.0 | 0.00 |
