Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPF20A100S

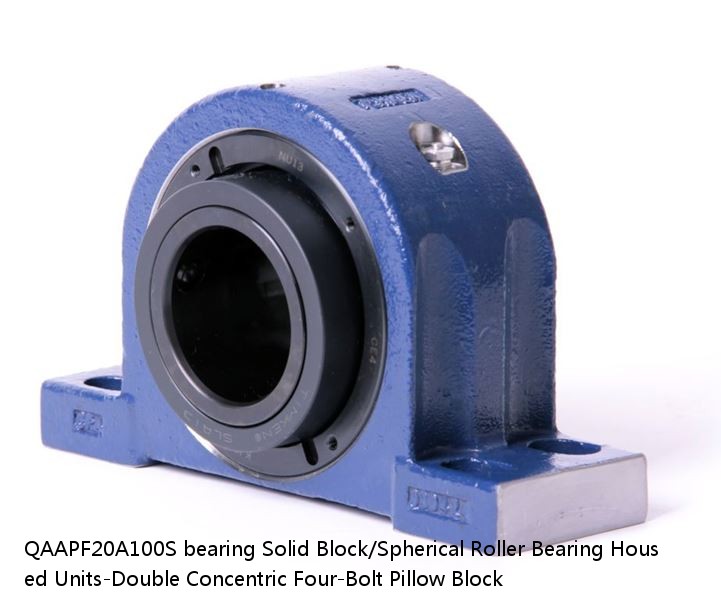

QAAPF20A100S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPF20A100S PDF download| QAAPF20A100S interchange timken QAAPF20A100S | |
| QAAPF20A100S cross reference timken QAAPF20A100S | |
| QAAPF20A100S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAPF20A100S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 67 lb30.400 Kg |
| r(min): | 0.0030 in0.076 mm |
| r1(min): | 100 mm |
| Width: | Metric |
| Size: | 0.0030 in0.075 mm |
| Weight： | 0.0047 in0.120 mm |
| Bearing Number： | 2000 rpm |
| Housing Construction： | 1200 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | Double Concentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAAPF20A100SB QAAPF20A100SC QAAPF20A100SEB QAAPF20A100SEC QAAPF20A100SEM QAAPF20A100SEN QAAPF20A100SEO QAAPF20A100SET QAAPF20A100SM QAAPF20A100SN QAAPF20A100SO QAAPF20A100ST |
| Locking Style | Double Concentric |
| Weight | 67 lb30.400 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450299404 0883450299411 0883450299428 0883450299435 0883450299442 0883450299459 0883450299466 0883450299473 0883450299480 0883450299497 0883450299503 0883450299510 |
| Dimension A | 4.25 in108.0 mm |
| Dimension B | 8.780 in223 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 13.38 in339.9 mm |
| Dimension D Min | 10.88 in276.4 mm |
| Dimension E | 2.25 in57.2 mm |
| Dimension F | 14.88 in378.0 mm |
| Dimension G | 4.310 in109.50 mm |
| Dimension H | 1.40 in35.6 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension L | 5.13 in130.3 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension RAA | 0.99 in25.1 mm |
| Dimension SAA | 5.94 in150.9 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 406504 | 406504 | 665.000 | 15.000 | 20.000 | 630.000 | 600.000 |
| JL730646/JL730612 | 28.575 mm1.1250 in | L730600 | 3.3 mm0.130 in | 3.300 mm0.13 in | 295 | METRIC |
| 7068DB FY | 340 | 5.0 | 7068DB FY | 1100 | 860 | 520 |
| BL4DA | BL4DA | - | - | - | - | - |
| QMTU15J300S | 4.67 | 3.14 | 35 lb15.90 Kg | 0883450103275 0883450103282 0883450103305 0883450103312 0883450103329 0883450103336 0883450103343 08 | 0.0020 in0.051 mm | 3 in |
| UCHA204-12J | A-1/4-28UNF | UCHA204-12J | 3/4 | Normal-duty(2) | - | - |
| 7210DF FY | 50 | 1.1 | 7210DF FY | 8500 | 6800 | 90 |
| 7338DB | 190 | 2.00 | 5.0 | 7338 | 47.000 | 2 300 |
| LM 3L | LM 3L | - | - | - | - | - |
| 24072EJW33W45AC3 | 2.19 | 3.33 | 2.24 | 24072CJW33W45AC3 | 600 | 540 |
