Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPF20A400S

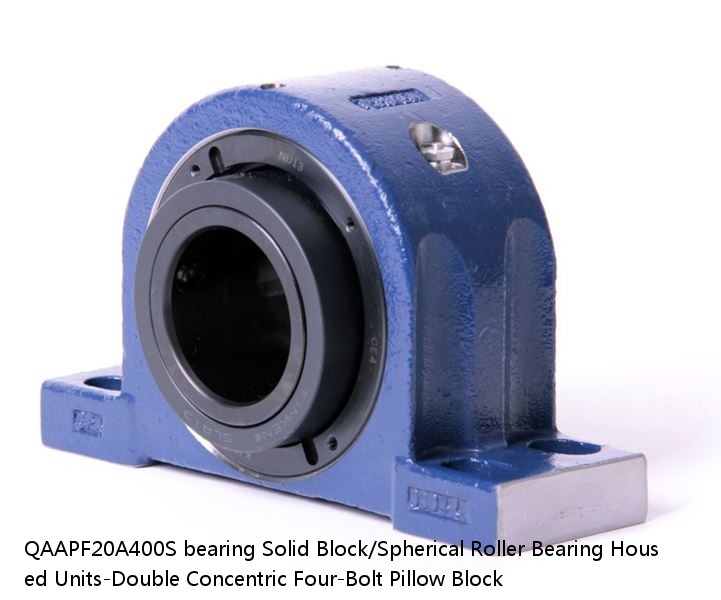

QAAPF20A400S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPF20A400S PDF download| QAAPF20A400S interchange timken QAAPF20A400S | |
| QAAPF20A400S cross reference timken QAAPF20A400S | |
| QAAPF20A400S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAPF20A400S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 67 lb30.400 Kg |
| r(min): | 0.0030 in0.076 mm |
| r1(min): | 4 in |
| Width: | Imperial |
| Size: | 0.0030 in0.075 mm |
| Weight： | 0.0047 in0.120 mm |
| Bearing Number： | 2000 rpm |
| Housing Construction： | 1200 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | Double Concentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAPF20A400SB QAAPF20A400SC QAAPF20A400SEB QAAPF20A400SEC QAAPF20A400SEM QAAPF20A400SEN QAAPF20A400SEO QAAPF20A400SET QAAPF20A400SM QAAPF20A400SN QAAPF20A400SO QAAPF20A400ST |
| Locking Style | Double Concentric |
| Weight | 67 lb30.400 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450027809 0883450027816 0883450027830 0883450027847 0883450027854 0883450027861 0883450027878 0883450027885 0883450189583 0883450189712 0883450266925 0883450267069 |
| Dimension A | 4.25 in108.0 mm |
| Dimension B | 8.780 in223 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 13.38 in339.9 mm |
| Dimension D Min | 10.88 in276.4 mm |
| Dimension E | 2.25 in57.2 mm |
| Dimension F | 14.88 in378.0 mm |
| Dimension G | 4.310 in109.50 mm |
| Dimension H | 1.40 in35.6 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension L | 5.13 in130.3 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension RAA | 0.99 in25.1 mm |
| Dimension SAA | 5.94 in150.9 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 23124KEJW33 | 2.32 | 3.54 | 2.38 | 23124KCJW33 | 2600 | 2200 |
| 7904CDT | 20 | 0.15 | 0.3 | 0.070 | 43500 | 32000 |
| ACH580-PDR-024A-2-Architecture300 | 10.0 | 161 | 7.5 | R2 | PX1-2 | 320 |
| AR 44 | +0.16/0 | 1.5 | 2.3 | AR 44 | 45.8 | 45.2 |
| OKCX 590 | 9200440590 | 1769.000 | 770.000 | 6660.000 | 590.000 | 1200.000 |
| NU1008 | 40 | 0.6 | 1.0 | 0.226 | 12000 | 10000 |
| BT4-8069 G/HA1VA901 | 565.150 | 2400 | 36500 | 13400 | BT4-8069 G/HA1VA901 | 717.550 |
| E/PF/TRB/4/ECC | 2.14 | 1.77 | 0.7 | 0.87 | 58.0 lb | 0883450504829 |
| CSKR4610A-0190-0-0AN | CSKR46 | - | - | - | - | - |
| 7221CDT FY | 105 | 2.1 | 7221CDT FY | 5700 | 4300 | 190 |
