Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPX18A307S

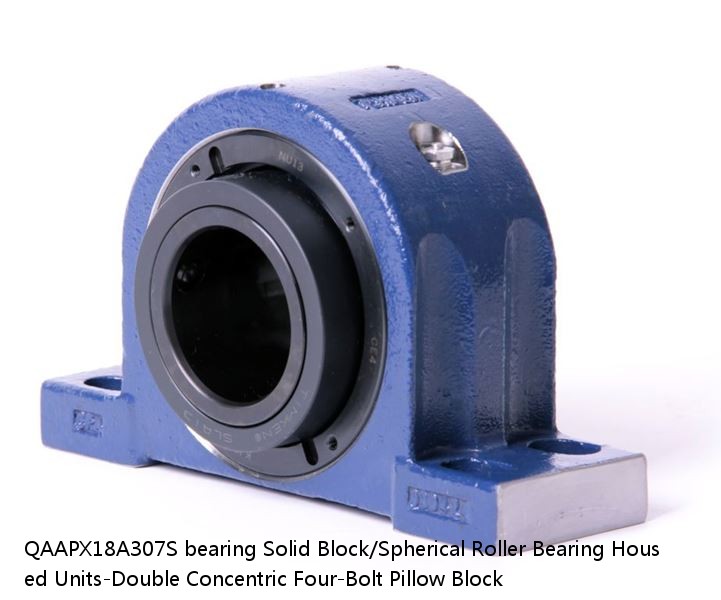

QAAPX18A307S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPX18A307S PDF download| QAAPX18A307S interchange timken QAAPX18A307S | |
| QAAPX18A307S cross reference timken QAAPX18A307S | |
| QAAPX18A307S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAPX18A307S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 64 lb29 Kg |
| r(min): | 0.0030 in0.076 mm |
| r1(min): | 3-7/16 in |
| Width: | Imperial |
| Size: | 0.0024 in0.060 mm |
| Weight： | 0.0039 in0.100 mm |
| Bearing Number： | 2400 rpm |
| Housing Construction： | 1400 rpm |
| UPC Code： | 1000 rpm |
| Shaft Size Type： | Double Concentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAPX18A307SB QAAPX18A307SC QAAPX18A307SEB QAAPX18A307SEC QAAPX18A307SEM QAAPX18A307SEN QAAPX18A307SEO QAAPX18A307SET QAAPX18A307SETNG QAAPX18A307SM QAAPX18A307SN QAAPX18A307SO QAAPX18A307ST |
| Locking Style | Double Concentric |
| Weight | 64 lb29 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450012355 0883450012362 0883450012379 0883450012386 0883450012393 0883450012409 0883450012416 0883450012423 0883450012430 0883450012447 0883450267663 0883450267885 0883450953757 |
| Dimension A | 4.00 in101.6 mm |
| Dimension B | 7.92 in201.2 mm |
| Dimension C | 5.13 in130.3 mm |
| Dimension D Max | 12.19 in309.6 mm |
| Dimension D Min | 10.81 in274.6 mm |
| Dimension E | 3.00 in76.2 mm |
| Dimension F | 15.000 in381.00 mm |
| Dimension G | 4.7500 in120.70 mm |
| Dimension H | 1.50 in38.1 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension L | 4.97 in126.2 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension R | 0.84 in21.3 mm |
| Dimension S | 5.18 in131.6 mm |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.0024 in0.060 mm |
| Pre Install Clearance Max | 0.0039 in0.100 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NA69/28A | 28 | 0.3 | NA69/28A | 14000 | 32 | 45 |
| 7005DT | 25 | 0.30 | 0.6 | 7005 | 0.090 | 21 000 |
| 6214 | 1.1 Kg | 1.500 mm | 24.000 mm | 125.000 mm | 8300 rpm | 5700 rpm |
| 22220EAKD1 | 22220EAKD1 | 4.800 | 11.0 | 100 | 2.1 | 3600 |
| NUP2210ET | Standard | 50 | 1.0 | 1.0 | 1.1 | 1.1 |
| H2316 | 1.28 Kg | M80x2 | MB16 | KM16 | 78.00 mm | 105 mm |
| 30252 | 0.74 | Standard | 260 | 5.0 | 5.0 | 6.0 |
| 23144KEMBW40IW534 | 2.12 | 3.24 | 2.17 | 1200 | 1000 | 3.00 mm0.120 in |
| 220RU91OO127R3 | NU | N | 1000 | 930 | METRIC | 329.000 mm13.000 in |
| NSR50TBC1UU+780L (G30g30, A-PT1/8) | UU- With end seals (on both ends) | No connection | NSR50TBC | 30.00 | A-PT1/8 | - |
