Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Round Flange Block
- QAFY15A075S

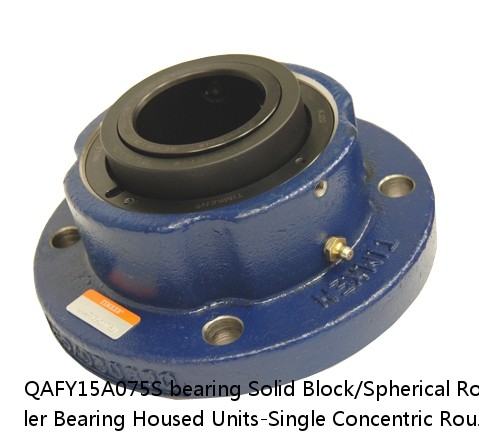

QAFY15A075S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Round Flange Block
QAFY15A075S PDF download| QAFY15A075S interchange timken QAFY15A075S | |
| QAFY15A075S cross reference timken QAFY15A075S | |
| QAFY15A075S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAFY15A075S |
| d: | 4.67 |
| D: | 3.14 |
| B: | 28 lb12.7 Kg |
| r(min): | 0883450041805 0883450041812 0883450041843 0883450041850 0883450041867 0883450041874 0883450041881 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 75 mm |
| Size: | Metric |
| Weight： | 0.050 mm0.0020 in |
| Bearing Number： | 0.080 mm0.0031 in |
| Housing Construction： | 2900 rpm |
| UPC Code： | 1600 rpm |
| Shaft Size Type： | 1300 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAFY15A075SB QAFY15A075SC QAFY15A075SEB QAFY15A075SEC QAFY15A075SEM QAFY15A075SEN QAFY15A075SEO QAFY15A075SET QAFY15A075SM QAFY15A075SN QAFY15A075SO QAFY15A075ST |
| Locking Style | Single Concentric |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450041805 0883450041812 0883450041843 0883450041850 0883450041867 0883450041874 0883450041881 0883450192026 0883450192187 0883450192347 0883450269384 0883450269544 |
| Dimension BC | 7.88 in200.2 mm |
| Dimension C | 4.5000 in114.30 mm |
| Dimension D | 6.63 in168.4 mm |
| Dimension E | 5.57 in141.5 mm |
| Dimension F | 9.5 in241.3 mm |
| Dimension H | 0.94 in23.9 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension KA | 1.25 in31.8 mm |
| Dimension L Exp | 3.95 in100.3 mm |
| Dimension L Fix | 3.87 in98.3 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension N | 2.930 in74.40 mm |
| Dimension RA | 0.25 in6.4 mm |
| Dimension SA | 3.62 in91.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.050 mm0.0020 in |
| Pre Install Clearance Max | 0.080 mm0.0031 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| K145x153x26 | K145x153x26 | 0.25 | 2800 | 1900 | 145 | 153 |
| 90BER20SV1V | 90 | 1.0 | 1.5 | 90BER20SV1V | 1521.000 | 41.800 |
| 23084RHA | 5.0 | 23084RHA | 530 | 400 | 620 | 425 |
| QVVPN22V311S | 4.06 | 2.73 | 84 lb38.1 Kg | 0883450146111 0883450146265 0883450151610 0883450151764 0883450162777 0883450163996 0883450181822 08 | 0.0030 in0.076 mm | 3-11/16 in |
| SV205 | - | M14 | 16 | 20 | 165 | 130 |
| 6315ZZ | 75 | 2.1 | 6315ZZ | 4200 | 160 | 5.4 |
| 53417U | 72 | 88 | 85 | 2 | 53417U | 1200 |
| SAA 45 TXE-2LS | 200.000 | 360.000 | 104.000 | 45.000 | 28.000 | 32.000 |
| ACS800-U7-0140-7 | 125 | 100 | 125 | 95 | 190 | R7 |
| 1726203-2RS1-24.5 | 40 | - | - | 0.000 | 4.750 | 9.560 |
