Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Round Flange Block
- QMFY20J315S

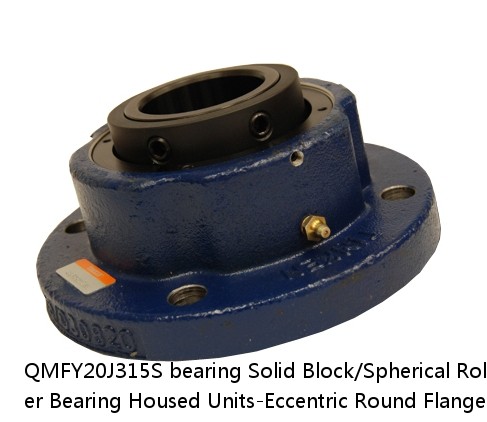

QMFY20J315S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Round Flange Block
QMFY20J315S PDF download| QMFY20J315S interchange timken QMFY20J315S | |
| QMFY20J315S cross reference timken QMFY20J315S | |
| QMFY20J315S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMFY20J315S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 66 lb29.90 Kg |
| r(min): | 0883450075022 0883450075039 0883450075053 0883450075060 0883450075077 0883450075084 0883450075091 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-15/16 in |
| Size: | Imperial |
| Weight： | 0.075 mm0.0030 in |
| Bearing Number： | 0.120 mm0.0047 in |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | 900 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMFY20J315SB QMFY20J315SC QMFY20J315SEB QMFY20J315SEC QMFY20J315SEM QMFY20J315SEN QMFY20J315SEO QMFY20J315SET QMFY20J315SM QMFY20J315SN QMFY20J315SO QMFY20J315ST |
| Locking Style | Eccentric |
| Weight | 66 lb29.90 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450075022 0883450075039 0883450075053 0883450075060 0883450075077 0883450075084 0883450075091 0883450075107 0883450163828 0883450164351 0883450256186 0883450256704 |
| Dimension BC | 10.75 in273.1 mm |
| Dimension C | 6.0000 in152.4 mm |
| Dimension D | 8.38 in212.9 mm |
| Dimension E | 7.60 in193.0 mm |
| Dimension F | 12.63 in320.8 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 1 in24 mm |
| Dimension K | 1.63 in41.4 mm |
| Dimension L Exp | 4.95 in125.7 mm |
| Dimension L Fix | 4.87 in123.7 mm |
| Dimension M | 2.96 in75.2 mm |
| Dimension N | 3.810 in96.80 mm |
| Dimension R | 0.27 in6.9 mm |
| Dimension S | 4.590 in116.60 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| HK4516 | HK4516 | 0.046 | 5500 | 3700 | IR40x45x17 | 45 |
| 24026AXK30 | 130 | 2.0 | 7.77 | 3150 | 2400 | 200 |
| KTW 242834 | 24 | KTW 242834 | 27.0 | 24 | 28 | 21600 |
| NK30/20A | 0.3 | NK30/20A | 15000 | 30 | 40 | 6.10 |
| 24024AXK30 | 120 | 2.0 | 5.26 | 3450 | 2550 | 180 |
| ACS800-PC-0170-5 | 150 | 125 | 192 | 162 | 326 | R7 |
| 22336RHA | 4.0 | 1200 | 930 | 22336RHA | 380 | 163 |
| 53215U | 27 | 77 | 75 | 1 | 53215U | 2700 |
| FWF-404820 | FWF-404820 | 45.0 | 40.00 | 48.00 | 3300 | 32500 |
| 29320EJ | 7.7 Kg3.5 lb | 2000 rpm | 20.50 mm0.807 in | 35.40 mm1.394 in | 42 mm1.654 in | 1240 kN278000 lbf |
