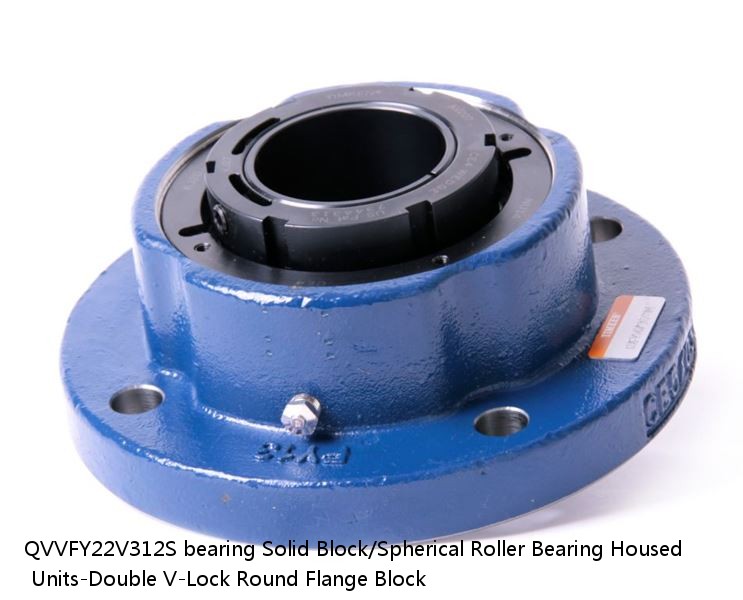

Double V-Lock Solid-Block Housed Units

QVVFY22V312S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block

QVVFY22V312S interchange timken QVVFY22V312S
QVVFY22V312S cross reference timken QVVFY22V312S
QVVFY22V312S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	QVVFY22V312S
d:	3.80
D:	2.55
B:	66 lb29.90 Kg
r(min):	0883450093347 0883450094016 0883450106351 0883450106542 0883450112642 0883450112925 0883450124867 08
r1(min):	0.0030 in0.076 mm
Width:	3-3/4 in
Size:	Imperial
Weight：	0.135 mm0.0053 in
Bearing Number：	0.170 mm0.0067 in
Housing Construction：	1700 rpm
UPC Code：	900 rpm
Shaft Size Type：	600 rpm

Engineering Group	Mounted Bearing
Bearing Number	22222
Shaft Size	3-3/4 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVFY22V312SB QVVFY22V312SC QVVFY22V312SEB QVVFY22V312SEC QVVFY22V312SEM QVVFY22V312SEN QVVFY22V312SEO QVVFY22V312SET QVVFY22V312SM QVVFY22V312SN QVVFY22V312SO QVVFY22V312ST
Locking Style	Double V-Lock
Weight	66 lb29.90 Kg
Housing Construction	Round Flange
UPC Code	0883450093347 0883450094016 0883450106351 0883450106542 0883450112642 0883450112925 0883450124867 0883450125499 0883450137270 0883450137409 0883450144551 0883450145169
Dimension BC	10.75 in273.1 mm
Dimension C	5.5000 in139.70 mm
Dimension D	8.76 in222.5 mm
Dimension E	7.60 in193.0 mm
Dimension F	12.63 in320.8 mm
Dimension H	1.13 in28.7 mm
Dimension J (Bolt Size)	1 in24 mm
Dimension L Exp	4.62 in117.3 mm
Dimension L Fix	4.54 in115.3 mm
Dimension N	4.060 in103.10 mm
Dimension RVV	0.45 in11.4 mm
Dimension SVV	4.99 in126.7 mm
C - Dynamic Load (Basic)	125000 lb555 kN
C0 - Static Load	147000 lb653 kN
e - Geometry Factor	0.25
Y1 - Geometry Factor	2.55
Y2 - Geometry Factor	3.80
Oil Lubrication - M/N Seal	900 rpm
Oil Lubrication - T Seal	1700 rpm
Oil Lubrication - B/C/O Seal	600 rpm
Grease Lubrication - M/N Seal	900 rpm
Grease Lubrication - T Seal	1200 rpm
Grease Lubrication - B/C/O Seal	600 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0053
Eng Internal Radial Clearance - Max	0.0067
Pre Install Clearance Min	0.135 mm0.0053 in
Pre Install Clearance Max	0.170 mm0.0067 in
