Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
- QVVFY26V115S

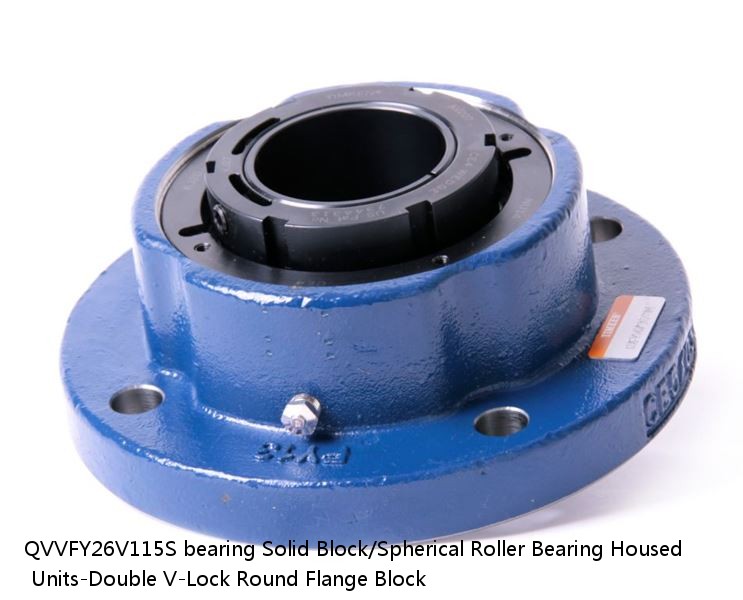

QVVFY26V115S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
QVVFY26V115S PDF download| QVVFY26V115S interchange timken QVVFY26V115S | |
| QVVFY26V115S cross reference timken QVVFY26V115S | |
| QVVFY26V115S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVFY26V115S |
| d: | 3.61 |
| D: | 2.43 |
| B: | 108.0 lb49.0 Kg |
| r(min): | 0883450069366 0883450069373 0883450286237 0883450286312 0883450287937 0883450288019 0883450289450 08 |
| r1(min): | 0.0050 in0.127 mm |
| Width: | 115 mm |
| Size: | Metric |
| Weight： | 0.135 mm0.0053 in |
| Bearing Number： | 0.170 mm0.0067 in |
| Housing Construction： | 1500 rpm |
| UPC Code： | 700 rpm |
| Shaft Size Type： | 400 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22226 |
| Shaft Size | 115 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVFY26V115SB QVVFY26V115SC QVVFY26V115SEB QVVFY26V115SEC QVVFY26V115SEM QVVFY26V115SEN QVVFY26V115SEO QVVFY26V115SET QVVFY26V115SM QVVFY26V115SN QVVFY26V115SO QVVFY26V115ST |
| Locking Style | Double V-Lock |
| Weight | 108.0 lb49.0 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450069366 0883450069373 0883450286237 0883450286312 0883450287937 0883450288019 0883450289450 0883450289535 0883450290975 0883450291057 0883450292498 0883450292573 |
| Dimension BC | 12.88 in327.2 mm |
| Dimension C | 6.880 in174.80 mm |
| Dimension D | 9.06 in230.1 mm |
| Dimension E | 6.44 in163.6 mm |
| Dimension F | 15.13 in384.3 mm |
| Dimension H | 1.50 in38.1 mm |
| Dimension J (Bolt Size) | 1 in24 mm |
| Dimension L Exp | 5.62 in142.7 mm |
| Dimension L Fix | 5.53 in140.5 mm |
| Dimension N | 4.210 in106.90 mm |
| Dimension RVV | 1.49 in37.8 mm |
| Dimension SVV | 7.02 in178.3 mm |
| C - Dynamic Load (Basic) | 170000 lb757 kN |
| C0 - Static Load | 212000 lb945 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.43 |
| Y2 - Geometry Factor | 3.61 |
| Oil Lubrication - M/N Seal | 700 rpm |
| Oil Lubrication - T Seal | 1500 rpm |
| Oil Lubrication - B/C/O Seal | 400 rpm |
| Grease Lubrication - M/N Seal | 700 rpm |
| Grease Lubrication - T Seal | 1000 rpm |
| Grease Lubrication - B/C/O Seal | 400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0050 in0.127 mm |
| Eng Internal Radial Clearance - Min | 0.0063 |
| Eng Internal Radial Clearance - Max | 0.0079 |
| Pre Install Clearance Min | 0.135 mm0.0053 in |
| Pre Install Clearance Max | 0.170 mm0.0067 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| GEC 710 TXA-2RS | 102000.000 | 62000.000 | 3.000 | 710.000 | 950.0000 | 500 |
| NUP2226 | 130 | 3.0 | 3.0 | 11.200 | 3000 | 2400 |
| NKJS25A | 25 | 0.6 | NKJS25A | 14000 | 32 | 47 |
| 22228CAMKE4 | 22228CAMKE4 | 14.50 | 250 | 2.7 | 4.0 | 2.6 |
| LM 406080N U AJ | One side Seal (U) | Steel | LM 406080N U AJ | Plastic | 40 | - |
| SDA5012VA-5G0+92LC0 | 92.000 | SDA5012VA-5 | There is the groove on bo... | - | - | - |
| 23134EMW33C3 | 2.33 | 3.55 | 2.39 | 1600 | 1400 | 2.00 mm0.080 in |
| 7309BDT | 45 | 1.00 | 1.5 | 1.750 | 6000 | 4500 |
| 232/500KYMBW507AC08 | 1.86 | 2.83 | 1.9 | 260 | 250 | 6.000 mm0.240 in |
| NU2216ET7 | Standard | 80 | 2.0 | 2.0 | 2.0 | 2.0 |
