Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
- QVVSN19V090S

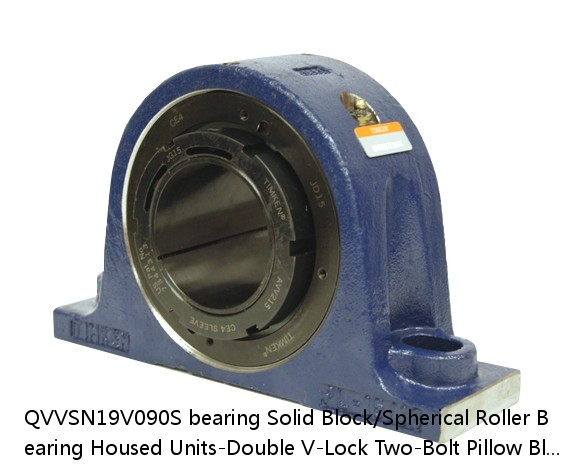

QVVSN19V090S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
QVVSN19V090S PDF download| QVVSN19V090S interchange timken QVVSN19V090S | |
| QVVSN19V090S cross reference timken QVVSN19V090S | |
| QVVSN19V090S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVSN19V090S |
| d: | 4.29 |
| D: | 2.88 |
| B: | 56 lb25.40 Kg |
| r(min): | 0883450149662 0883450149679 0883450177726 0883450177788 0883450178204 0883450178280 0883450205313 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 90 mm |
| Size: | Metric |
| Weight： | 0.0043 in0.110 mm |
| Bearing Number： | 0.0055 in0.140 mm |
| Housing Construction： | 2200 rpm |
| UPC Code： | 1300 rpm |
| Shaft Size Type： | 1000 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 90 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVSN19V090SB QVVSN19V090SC QVVSN19V090SEB QVVSN19V090SEC QVVSN19V090SEM QVVSN19V090SEN QVVSN19V090SEO QVVSN19V090SET QVVSN19V090SM QVVSN19V090SMNP QVVSN19V090SN QVVSN19V090SO QVVSN19V090ST |
| Locking Style | Double V-Lock |
| Weight | 56 lb25.40 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450149662 0883450149679 0883450177726 0883450177788 0883450178204 0883450178280 0883450205313 0883450205696 0883450217736 0883450218115 0883450230155 0883450230537 0883450456517 |
| Dimension A | 4.41 in112.0 mm |
| Dimension B | 8.34 in212 mm |
| Dimension C | 4.88 in124.0 mm |
| Dimension D Max | 12.87 in327.0 mm |
| Dimension D Min | 11.42 in290.0 mm |
| Dimension F | 14.96 in380.00 mm |
| Dimension G | 3.390 in86.00 mm |
| Dimension H | 1.53 in39.0 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension L | 4.02 in102.0 mm |
| Dimension RVV | 0.63 in16 mm |
| Dimension SVV | 4.65 in118.0 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 42688/20 | 30.162 | 76.200 | 6.40 | 42688/20 | 3200 | 2400 |
| HK2816C | HK2816C | 0.03 | 8500 | 5500 | IR22x28x17 | 28 |
| QVVF12V204S | 4.25 | 2.86 | 14 lb6.4 Kg | 0883450091886 0883450092012 0883450104913 0883450105101 0883450110785 0883450111188 0883450120791 08 | 0.0015 in0.038 mm | 2-1/4 in |
| 24122CK30E4 | 24122CK30E4 | 6.84 | 180 | 1.9 | 2.8 | 1.8 |
| MH-1081 | MH-1081 | 15.875 | 22.212 | 2.75 | 12.70 | 18.30 |
| AOHX3296 | 82.10 Kg | Tr530x6 | 1:12 | 15 mm | G1/4 | 364.00 mm |
| 24030CK30E4 | 24030CK30E4 | 10.50 | 225 | 2.3 | 3.4 | 2.2 |
| 3314 | 70 | 2.1 | 3314 | 3600 | 2700 | 150 |
| ZS4FC409-27 | A-1/8 NPT | ZS4FC409-27 | 1 11/16 | - | - | - |
| SD 3038S | 72 | M24 | M30 | SD 3038S | GS 38 | 46 |
