Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Cartridge Block
- QMMC22J408S

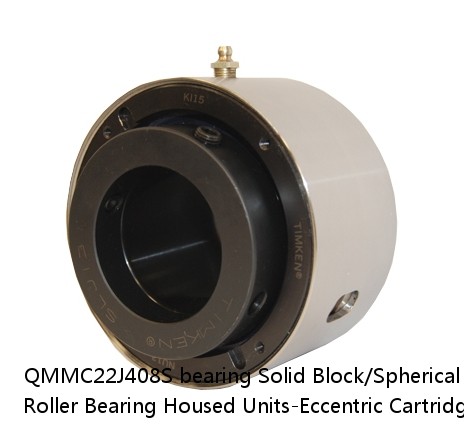

QMMC22J408S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Cartridge Block
QMMC22J408S PDF download| QMMC22J408S interchange timken QMMC22J408S | |
| QMMC22J408S cross reference timken QMMC22J408S | |
| QMMC22J408S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMMC22J408S |
| d: | 4.06 |
| D: | 2.73 |
| B: | 40.0 lb18.1 Kg |
| r(min): | 0.0050 in0.127 mm |
| r1(min): | 4-1/2 in |
| Width: | Imperial |
| Size: | 0.0030 in0.075 mm |
| Weight： | 0.0047 in0.120 mm |
| Bearing Number： | 1700 rpm |
| Housing Construction： | 900 rpm |
| UPC Code： | 600 rpm |
| Shaft Size Type： | Eccentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 4-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMMC22J408SB QMMC22J408SC QMMC22J408SEB QMMC22J408SEC QMMC22J408SEM QMMC22J408SEN QMMC22J408SEO QMMC22J408SET QMMC22J408SM QMMC22J408SN QMMC22J408SO QMMC22J408ST |
| Locking Style | Eccentric |
| Weight | 40.0 lb18.1 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450079228 0883450079235 0883450079259 0883450079266 0883450079273 0883450079280 0883450079297 0883450079303 0883450168106 0883450168786 0883450259903 0883450260381 |
| Dimension A | 0.780 in19.80 mm |
| Dimension B | 1.50 in38.1 mm |
| Dimension C | 6.3 in160 mm |
| Dimension D | 0.31 in7.9 mm |
| Dimension F | 8.750 in222.30 mm |
| Dimension G | 4.270 in108.50 mm |
| Dimension K | 1.83 in46.5 mm |
| Dimension L Exp | 5.91 in150.1 mm |
| Dimension L Fix | 5.83 in148.1 mm |
| Dimension M | 3.7 in94 mm |
| Dimension R | 0.30 in7.6 mm |
| Dimension S | 5.53 in140.5 mm |
| C0 - Static Load | 147000 lb653 kN |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0050 in0.127 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 406203 | 406203 | 630.000 | 30.000 | 50.000 | 620.000 | 602.000 |
| ACS580-01-361A-4-Architecture300 | 97 | 380 | 300 | 250 | 361 | 302 |
| QVVPL16V300S | 4.67 | 3.14 | 28 lb12.7 Kg | 0883450172318 0883450172509 0883450172691 0883450173070 0883450173261 0883450173452 0883450203081 08 | 0.0020 in0.051 mm | 3 in |
| BNF4510-3RRG1+114LC0 | 114.000 | BNF4510-3 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| BHA 1812Z | 28.575 | BHA 1812Z | 45.0 | 28.575 | 38.100 | 22500 |
| 6220/N | 3.2 Kg | 2.100 mm | 34.000 mm | 180.000 mm | 6500 rpm | 4500 rpm |
| HJ-283716 | 1.52 | HJ-283716 | 9900 | 44.450 | 58.738 | 12.80 |
| NU 217 ECM/C3VL0241 | 5300 | 4500 | 25.500 | 200.000 | 168.000 | NU 217 ECM/C3VL0241 |
| NJ1056 | 280 | 4.0 | 4.0 | NJ1056 | 30.900 | 1 800 |
| FTW 4030V-150 | FTW 4030V-150 | - | - | - | - | - |
