Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMPL09J112S

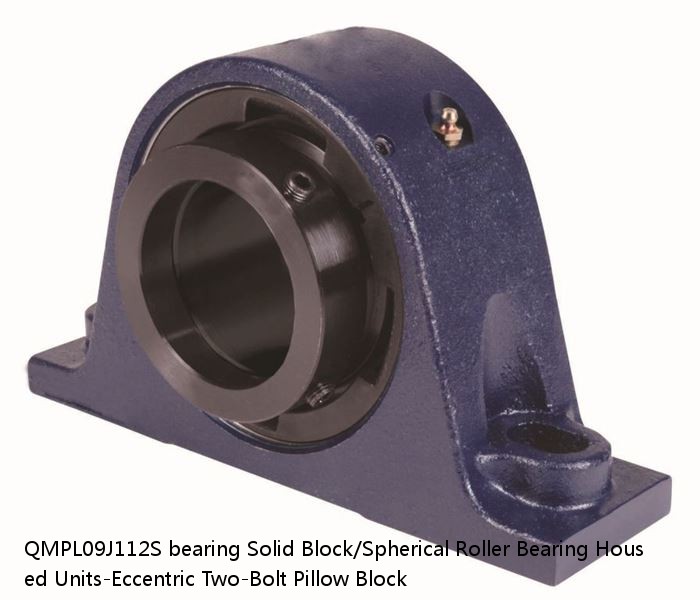

QMPL09J112S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMPL09J112S PDF download| QMPL09J112S interchange timken QMPL09J112S | |
| QMPL09J112S cross reference timken QMPL09J112S | |
| QMPL09J112S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMPL09J112S |
| d: | 3.93 |
| D: | 2.64 |
| B: | 10 lb4.5 Kg |
| r(min): | 0883450086820 0883450086837 0883450086851 0883450086868 0883450086875 0883450086882 0883450086899 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 1-3/4 in |
| Size: | Imperial |
| Weight： | 0.0014 in0.035 mm |
| Bearing Number： | 0.0022 in0.055 mm |
| Housing Construction： | 4500 rpm |
| UPC Code： | 2700 rpm |
| Shaft Size Type： | 1950 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22209 |
| Shaft Size | 1-3/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMPL09J112SB QMPL09J112SC QMPL09J112SEB QMPL09J112SEC QMPL09J112SEM QMPL09J112SEN QMPL09J112SEO QMPL09J112SET QMPL09J112SM QMPL09J112SMNG QMPL09J112SMNP QMPL09J112SMNPFG QMPL09J112SN QMPL09J112SO QMPL |
| Locking Style | Eccentric |
| Weight | 10 lb4.5 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450086820 0883450086837 0883450086851 0883450086868 0883450086875 0883450086882 0883450086899 0883450086905 0883450155014 0883450155359 0883450249959 0883450250290 0883450476102 0883450491730 0883 |
| Dimension A | 2.13 in54.1 mm |
| Dimension B | 4.13 in104.9 mm |
| Dimension C | 2.62 in66.5 mm |
| Dimension D Max | 5.75 in146.1 mm |
| Dimension D Min | 5.25 in133.4 mm |
| Dimension F | 7.13 in181.1 mm |
| Dimension G | 2.370 in60.20 mm |
| Dimension H | 1.25 in31.8 mm |
| Dimension J (Bolt Size) | 0.500 in12 mm |
| Dimension K | 1 in25.4 mm |
| Dimension L | 3.06 in77.7 mm |
| Dimension M | 1.88 in47.8 mm |
| Dimension R | 0.19 in4.8 mm |
| Dimension S | 2.880 in73.20 mm |
| C0 - Static Load | 24200 lb108 kN |
| C - Dynamic Load (Basic) | 24500 lb109 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.64 |
| Y2 - Geometry Factor | 3.93 |
| Oil Lubrication - M/N Seal | 2700 rpm |
| Oil Lubrication - T Seal | 4500 rpm |
| Oil Lubrication - B/C/O Seal | 1950 rpm |
| Grease Lubrication - M/N Seal | 2700 rpm |
| Grease Lubrication - T Seal | 4000 rpm |
| Grease Lubrication - B/C/O Seal | 1950 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0014 |
| Eng Internal Radial Clearance - Max | 0.0022 |
| Pre Install Clearance Min | 0.0014 in0.035 mm |
| Pre Install Clearance Max | 0.0022 in0.055 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 3878A/3821 | 1.49 | 30.165 mm1.1876 in | 3800 | 1.27 mm0.050 in | 3.560 mm0.14 in | 1.45 |
| QVC14V208S | 4.32 | 2.90 | 16 lb7.30 Kg | 0883450037297 0883450061278 0883450104951 0883450104999 0883450184045 0883450212977 0883450213356 08 | 0.0015 in0.038 mm | 2-1/2 in |
| NU214ET7 & | HPS | 70 | 1.5 | 1.5 | 1.5 | 1.5 |
| HN 1816 | HN 1816 | 14000 | 11000 | 3.800 | 33.500 | 16.100 |
| HJ-223020IR-182220 | 28.575 | 1.02 | IR-182220 | HJ-223020 | 13000 | 34.925 |
| M-1261 | M-1261 | 19.050 | 25.400 | 2.10 | 9.70 | 13.60 |
| FJLT-1623 | 9500 | FJLT-1623 | 25.0 | 11000 | 16 | 24 |
| K12x17x13 | K12x17x13 | 0.0075 | 26000 | 17000 | 12 | 17 |
| E/4BF/TRB/1 11/16/ECC | 2.37 | 1.96 | 0.7 | 0.87 | 11.0 lb | 0883450503457 |
| NU2217ET & | HPS | 85 | 2.0 | 2.0 | 2.0 | 2.0 |
