Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMPXT15J070S

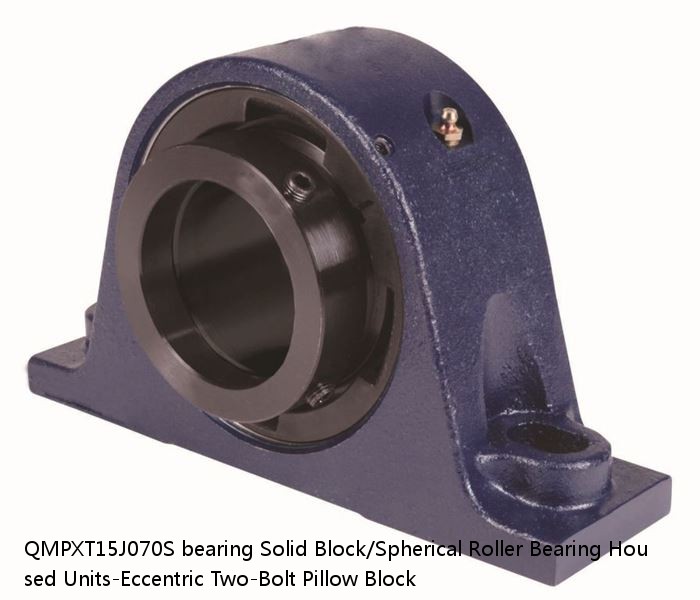

QMPXT15J070S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMPXT15J070S PDF download| QMPXT15J070S interchange timken QMPXT15J070S | |
| QMPXT15J070S cross reference timken QMPXT15J070S | |
| QMPXT15J070S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMPXT15J070S |
| d: | 4.67 |
| D: | 3.14 |
| B: | 28 lb12.7 Kg |
| r(min): | 0883450141376 0883450141383 0883450141390 0883450141406 0883450141413 0883450141420 0883450141437 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 70 mm |
| Size: | Metric |
| Weight： | 0.0020 in0.050 mm |
| Bearing Number： | 0.0031 in0.080 mm |
| Housing Construction： | 2900 rpm |
| UPC Code： | 1600 rpm |
| Shaft Size Type： | 1300 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 70 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMPXT15J070SB QMPXT15J070SC QMPXT15J070SEB QMPXT15J070SEC QMPXT15J070SEM QMPXT15J070SEN QMPXT15J070SEO QMPXT15J070SET QMPXT15J070SM QMPXT15J070SN QMPXT15J070SO QMPXT15J070ST |
| Locking Style | Eccentric |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450141376 0883450141383 0883450141390 0883450141406 0883450141413 0883450141420 0883450141437 0883450141444 0883450159180 0883450159272 0883450252478 0883450252577 |
| Dimension A | 3.50 in88.9 mm |
| Dimension B | 6.84 in173.7 mm |
| Dimension C | 4.01 in101.9 mm |
| Dimension D Max | 10.44 in265.2 mm |
| Dimension D Min | 9.06 in230.1 mm |
| Dimension F | 13.000 in330.20 mm |
| Dimension G | 2.980 in75.70 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension K | 1.25 in31.8 mm |
| Dimension L | 3.86 in98.0 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension R | 0.24 in6.1 mm |
| Dimension S | 3.62 in91.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| RCJ2 1/8 | 8.47 lb3.842 Kg | 161.9 mm6.374 in | 6570 lbf29200 N | 2 1/8 in54 mm | Industrial | Shroud Seal |
| 30FSF50 | 45.0 | 36.0 | 30 | 30FSF50 | 0.235 | 50 |
| 2311 KM | 7500 | 11000 | 24.000 | 76.100 | 2311 KM | 120.000 |
| UCSPA204JH1S6 | A-1/4-28UNF | 20 / Normal-duty(2) | 20 | Normal-duty(2) | Standard | - |
| C 2317 K + H 2317 | 4300 | 3200 | H 2317 | 75.000 | 64.000 | 600.000 |
| GTRI 203825 | 20 | GTRI 203825 | 138.0 | 25 | 38 | 42400 |
| ACS250-03U-04A3-2+B063+F278 | 161 | 200 - 240 | Three | 4.3 | 1.0 | 232 |
| ARN4090 | 40 | ARN4090 | 2.15 | 3800 | 950 | 90 |
| QMPL15J215S | 4.67 | 3.14 | 28 lb12.7 Kg | 0883450088121 0883450088138 0883450088152 0883450088169 0883450088176 0883450088183 0883450088190 08 | 0.0020 in0.051 mm | 2-15/16 in |
| 85073 | 85073 | 242.900 | 247.675 | 25.400 | - | - |
