Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMSN09J040S

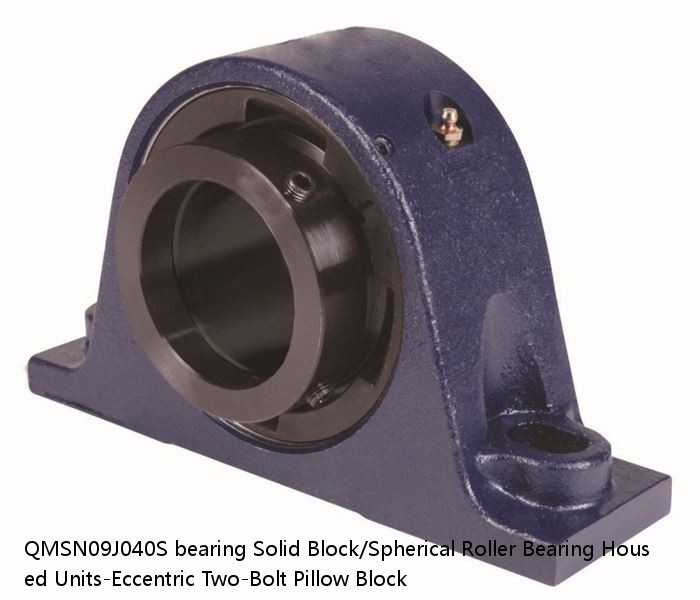

QMSN09J040S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMSN09J040S PDF download| QMSN09J040S interchange timken QMSN09J040S | |
| QMSN09J040S cross reference timken QMSN09J040S | |
| QMSN09J040S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMSN09J040S |
| d: | 3.93 |
| D: | 2.64 |
| B: | 23 lb10.5 Kg |
| r(min): | 0883450096027 0883450096034 0883450096058 0883450096065 0883450096072 0883450096089 0883450096096 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 40 mm |
| Size: | Metric |
| Weight： | 0.0014 in0.035 mm |
| Bearing Number： | 0.0022 in0.055 mm |
| Housing Construction： | 4500 rpm |
| UPC Code： | 2700 rpm |
| Shaft Size Type： | 1950 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22209 |
| Shaft Size | 40 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMSN09J040SB QMSN09J040SC QMSN09J040SEB QMSN09J040SEC QMSN09J040SEM QMSN09J040SEN QMSN09J040SEO QMSN09J040SET QMSN09J040SM QMSN09J040SN QMSN09J040SO QMSN09J040ST |
| Locking Style | Eccentric |
| Weight | 23 lb10.5 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450096027 0883450096034 0883450096058 0883450096065 0883450096072 0883450096089 0883450096096 0883450096102 0883450160803 0883450161169 0883450253468 0883450253857 |
| Dimension A | 2.36 in60.0 mm |
| Dimension B | 4.370 in111.00 mm |
| Dimension C | 2.64 in67.0 mm |
| Dimension D Max | 6.89 in175.0 mm |
| Dimension D Min | 6.26 in159.0 mm |
| Dimension F | 8.07 in205.00 mm |
| Dimension G | 2.440 in62.00 mm |
| Dimension H | 1.38 in35.0 mm |
| Dimension J (Bolt Size) | 0.500 in12 mm |
| Dimension K | 0.98 in25.0 mm |
| Dimension L | 3.11 in79.0 mm |
| Dimension M | 1.89 in48 mm |
| Dimension R | 0.24 in6.0 mm |
| Dimension S | 2.87 in73.00 mm |
| C0 - Static Load | 24200 lb108 kN |
| C - Dynamic Load (Basic) | 24500 lb109 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.64 |
| Y2 - Geometry Factor | 3.93 |
| Oil Lubrication - M/N Seal | 2700 rpm |
| Oil Lubrication - T Seal | 4500 rpm |
| Oil Lubrication - B/C/O Seal | 1950 rpm |
| Grease Lubrication - M/N Seal | 2700 rpm |
| Grease Lubrication - T Seal | 4000 rpm |
| Grease Lubrication - B/C/O Seal | 1950 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0014 |
| Eng Internal Radial Clearance - Max | 0.0022 |
| Pre Install Clearance Min | 0.0014 in0.035 mm |
| Pre Install Clearance Max | 0.0022 in0.055 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| CM-UCP328D1 | CM-UCP328D1 | M20x1.5 | 140 | 59.0 | UC328D1 | 55 |
| 81180 M | 700 | 360 | 5600.000 | 965.000 | 65.000 | 0.000 |
| 89108D/89150 | 4.3750 in111.125 mm | 89000 | 0.130 in3.30 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 15.0000 in381.000 mm |
| 100BER20SV1V | 100 | 1.0 | 1.5 | 100BER20SV1V | 1650.000 | 44.100 |
| WMLF5008ZZX | 5.0 | 0.05 | WMLF5008ZZX | 59000 | 8 | 0.002 |
| 7221CDB FY | 105 | 2.1 | 7221CDB FY | 5700 | 4300 | 190 |
| HJ-405228IR-324028 | 50.800 | 2.03 | IR-324028 | HJ-405228 | 6800 | 63.500 |
| K120x127x24 | K120x127x24 | 0.16 | 3300 | 2200 | 120 | 127 |
| 63172RU | 85 | 3.0 | 3700 | 63172RU | 180 | 6.35 |
| 6076 | 380 | 5.0 | 6076 | 67.50 | 1200 | 990 |
