Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block
- QVMC20V303S

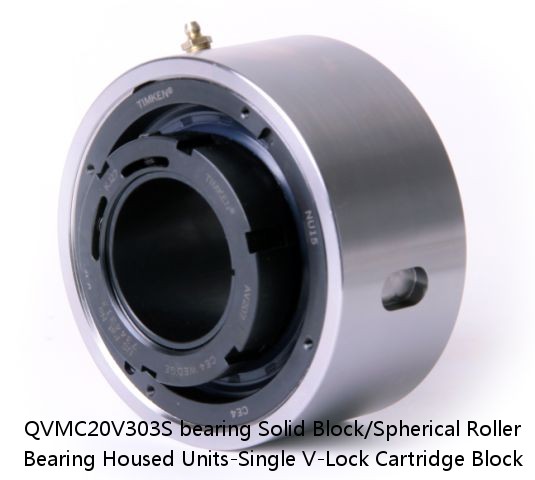

QVMC20V303S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block
QVMC20V303S PDF download| QVMC20V303S interchange timken QVMC20V303S | |
| QVMC20V303S cross reference timken QVMC20V303S | |
| QVMC20V303S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVMC20V303S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 32 lb14.5 Kg |
| r(min): | 0883450150675 0883450150828 0883450158527 0883450158718 0883450179881 0883450180030 0883450190336 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-3/16 in |
| Size: | Imperial |
| Weight： | 0.0043 in0.109 mm |
| Bearing Number： | 0.0055 in0.140 mm |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | 900 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-3/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVMC20V303SB QVMC20V303SC QVMC20V303SEB QVMC20V303SEC QVMC20V303SEM QVMC20V303SEN QVMC20V303SEO QVMC20V303SET QVMC20V303SM QVMC20V303SN QVMC20V303SO QVMC20V303ST |
| Locking Style | Single V-Lock |
| Weight | 32 lb14.5 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450150675 0883450150828 0883450158527 0883450158718 0883450179881 0883450180030 0883450190336 0883450198882 0883450280617 0883450280761 0883450284813 0883450284967 |
| Dimension A | 0.781 in19.80 mm |
| Dimension B | 1.281 in32.5 mm |
| Dimension C | 4.9 in124.5 mm |
| Dimension D | 0.313 in8.0 mm |
| Dimension F | 8.1250 in206.40 mm |
| Dimension G | 3.370 in85.60 mm |
| Dimension L Exp | 4.10 in104.1 mm |
| Dimension L Fix | 4.02 in102.1 mm |
| Dimension RV | 0.27 in6.9 mm |
| Dimension SV | 3.75 in95.3 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.109 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NANF206-19J | A-1/4-28UNF | NANF206-19J | - | 1 3/16 | - | - |
| 3MV215WI | 1.50 mm0.059 in | 1.50 mm0.059 in | 19400 rpm | 9700 rpm | 17.462500 mm11/16 in | METRIC |
| TAFI 405530 | 40 | TAFI 405530 | 215.0 | 45 | 55 | 44600 |
| NUP2338 | 190 | 5.0 | 5.0 | 1800 | 1200 | NUP2338 |
| LM 254059 U AJ | One side Seal (U) | Steel | LM 254059 U AJ | Steel | 25 | - |
| 7210B | 50 | 1.1 | 7210B | 6800 | 5100 | 90 |
| 22219EAE4 | 22219EAE4 | 4.04 | 170 | 2.9 | 4.3 | 2.8 |
| GE 240 ES-2LS | 12700.000 | 2550.000 | 8.000 | 240.000 | 340.0000 | 500 |
| 23148KEMBW40IW534C3 | 2.23 | 3.4 | 2.28 | 1100 | 930 | 3.00 mm0.120 in |
| TRC-916 | 0.006 / 0.013 | 9/16 | 14.27 / 0.562 | 14.20 / 0.559 | 14.27 / 0.562 | 2.34 / 0.092 |
