Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block
- QVMC20V304S

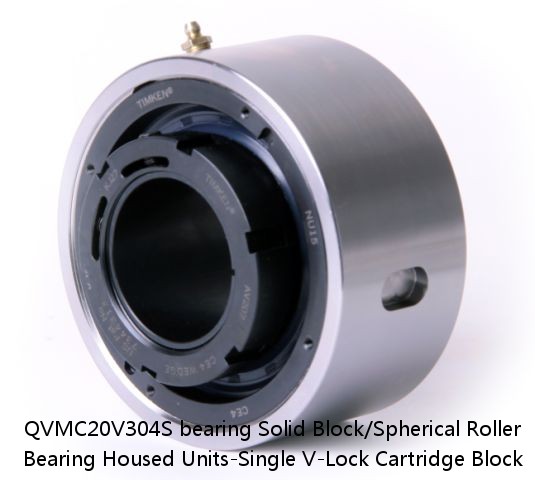

QVMC20V304S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block
QVMC20V304S PDF download| QVMC20V304S interchange timken QVMC20V304S | |
| QVMC20V304S cross reference timken QVMC20V304S | |
| QVMC20V304S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVMC20V304S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 32 lb14.5 Kg |
| r(min): | 0883450150682 0883450150835 0883450158534 0883450158824 0883450179898 0883450180047 0883450190343 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-1/4 in |
| Size: | Imperial |
| Weight： | 0.0043 in0.109 mm |
| Bearing Number： | 0.0055 in0.140 mm |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | 900 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVMC20V304SB QVMC20V304SC QVMC20V304SEB QVMC20V304SEC QVMC20V304SEM QVMC20V304SEN QVMC20V304SEO QVMC20V304SET QVMC20V304SM QVMC20V304SN QVMC20V304SO QVMC20V304ST |
| Locking Style | Single V-Lock |
| Weight | 32 lb14.5 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450150682 0883450150835 0883450158534 0883450158824 0883450179898 0883450180047 0883450190343 0883450198899 0883450280624 0883450280778 0883450284820 0883450284974 |
| Dimension A | 0.781 in19.80 mm |
| Dimension B | 1.281 in32.5 mm |
| Dimension C | 4.9 in124.5 mm |
| Dimension D | 0.313 in8.0 mm |
| Dimension F | 8.1250 in206.40 mm |
| Dimension G | 3.370 in85.60 mm |
| Dimension L Exp | 4.10 in104.1 mm |
| Dimension L Fix | 4.02 in102.1 mm |
| Dimension RV | 0.27 in6.9 mm |
| Dimension SV | 3.75 in95.3 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.109 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7036CDT | 180 | 1.10 | 2.1 | 7036C | 10.40 | 3 600 |
| 24160EMBW507C08C2 | 1.78 | 2.71 | 1.82 | 470 | 440 | 4.000 mm0.160 in |
| MCM06060H10K00 | MCM06060H10K00 | 600 | 10 | - | - | - |
| 21316EJW841C3 | 2.94 | 4.47 | 3.01 | 21316CJW841C3 | 4100 | 3400 |
| NJ1084 | 420 | 5.0 | 5.0 | NJ1084 | 91.000 | 1 100 |
| PCM 030406 E/VB055 | 3.000 | 4.500 | - | - | - | 6.000 |
| 6220M/C3 | 3.915 Kg | 2.100 mm | 34.000 mm | 180.000 mm | 6500 rpm | 4500 rpm |
| NF218 | 90 | 2.0 | 2.0 | 2.250 | 4800 | 4000 |
| HA350204ANN1P##---+(22) | HA35AN | 22.0 | - | - | - | - |
| EE480181D/480340 | 14.4999 in368.297 mm | 480000 | 0.250 in6.40 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 33.9960 in863.498 mm |
