Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block
- QVMC22V400S

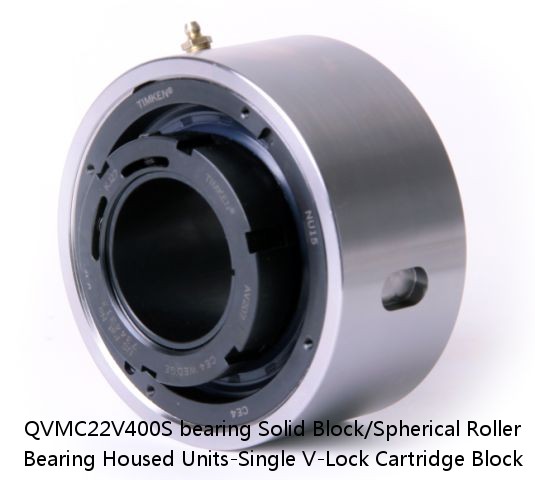

QVMC22V400S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block
QVMC22V400S PDF download| QVMC22V400S interchange timken QVMC22V400S | |
| QVMC22V400S cross reference timken QVMC22V400S | |
| QVMC22V400S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVMC22V400S |
| d: | 4.06 |
| D: | 2.73 |
| B: | 40.0 lb18.1 Kg |
| r(min): | 0883450047227 0883450047296 0883450208017 0883450208161 0883450220439 0883450220583 0883450232869 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 4 in |
| Size: | Imperial |
| Weight： | 0.0053 in0.135 mm |
| Bearing Number： | 0.0067 in0.170 mm |
| Housing Construction： | 1700 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | 600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVMC22V400SB QVMC22V400SC QVMC22V400SEB QVMC22V400SEC QVMC22V400SEM QVMC22V400SEN QVMC22V400SEO QVMC22V400SET QVMC22V400SM QVMC22V400SN QVMC22V400SO QVMC22V400ST |
| Locking Style | Single V-Lock |
| Weight | 40.0 lb18.1 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450047227 0883450047296 0883450208017 0883450208161 0883450220439 0883450220583 0883450232869 0883450233019 0883450241601 0883450241755 0883450246569 0883450246712 |
| Dimension A | 0.781 in19.80 mm |
| Dimension B | 1.281 in32.5 mm |
| Dimension C | 5.5 in139.7 mm |
| Dimension D | 0.313 in8.0 mm |
| Dimension F | 8.750 in222.30 mm |
| Dimension G | 3.850 in97.80 mm |
| Dimension L Exp | 4.53 in115.1 mm |
| Dimension L Fix | 4.45 in113.0 mm |
| Dimension RV | 0.32 in8.1 mm |
| Dimension SV | 4.13 in104.9 mm |
| C0 - Static Load | 147000 lb653 kN |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0053 |
| Eng Internal Radial Clearance - Max | 0.0067 |
| Pre Install Clearance Min | 0.0053 in0.135 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 87513 | 87513 | 323.850 | 328.625 | 17.475 | - | - |
| 6900NR | 10 | 0.3 | 6900NR | 0.01 | 36000 | 30000 |
| UCF201JE | A-1/4-28UNF | UCF201JE | Normal duty(2) | 12 | - | - |
| 3MVC214WI | 1.50 mm0.059 in | 1.50 mm0.059 in | 24800 rpm | 12400 rpm | 17.462500 mm11/16 in | METRIC |
| NJ209ET & | HPS | 45 | 1.0 | 1.0 | 1.1 | 1.1 |
| SBPFL207-22J | Normal-duty(2) | SBPFL207-22J | Standard | 1 3/8 | - | - |
| 46T30219JR/63 | 78 | 95 | 2.5 | 46T30219JR/63 | 170 | 44.0 |
| 24128AXW33 | 140 | 2.1 | 12.70 | 2800 | 2100 | 225 |
| P 80 R-35 FM | 5300 | 15.3 | 25.5 | P 80 | P 80 R-35 FM | YET 207 |
| 6200/N/C3 | 0.030 Kg | 0.600 mm | 9.000 mm | 30.000 mm | 32000 rpm | 22000 rpm |
