Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Cartridge Block
- TAMC13K204S

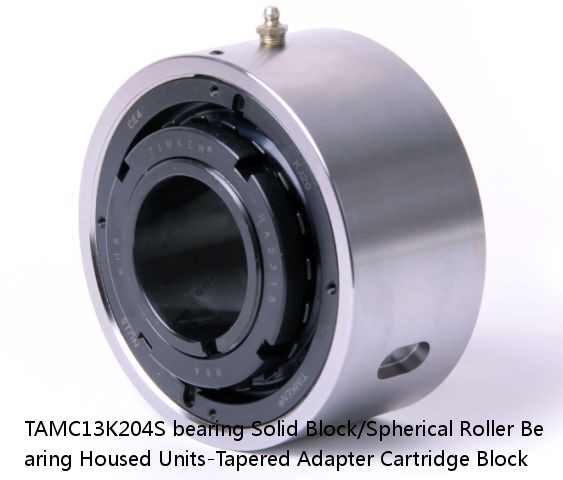

TAMC13K204S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Cartridge Block
TAMC13K204S PDF download| TAMC13K204S interchange timken TAMC13K204S | |
| TAMC13K204S cross reference timken TAMC13K204S | |
| TAMC13K204S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | TAMC13K204S |
| d: | 4.15 |
| D: | 2.79 |
| B: | 12 lb5.4 Kg |
| r(min): | 0883450122870 0883450122887 0883450122900 0883450122917 0883450122924 0883450122931 0883450122948 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 2-1/4 in |
| Size: | Imperial |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0037 in0.094 mm |
| Housing Construction： | 3200 rpm |
| UPC Code： | 1800 rpm |
| Shaft Size Type： | 1500 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 2-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | TAMC13K204SB TAMC13K204SC TAMC13K204SEB TAMC13K204SEC TAMC13K204SEM TAMC13K204SEN TAMC13K204SEO TAMC13K204SET TAMC13K204SM TAMC13K204SN TAMC13K204SO TAMC13K204ST |
| Locking Style | Tapered Adapter |
| Weight | 12 lb5.4 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450122870 0883450122887 0883450122900 0883450122917 0883450122924 0883450122931 0883450122948 0883450122955 0883450200080 0883450200295 0883450277723 0883450277921 |
| Dimension A | 0.530 in13.50 mm |
| Dimension B | 0.91 in23.0 mm |
| Dimension C | 3.35 in85.1 mm |
| Dimension D | 0.19 in4.8 mm |
| Dimension F | 5.0000 in127 mm |
| Dimension G | 2.640 in67.10 mm |
| Dimension L Exp | 2.87 in72.9 mm |
| Dimension L Fix | 2.79 in70.9 mm |
| Dimension M | 1.56 in39.6 mm |
| Dimension S | 2.56 in65 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| Int Radial Clearance Reduction Min | 0.0012 in0.030 mm |
| Int Radial Clearance Reduction Max | 0.0015 in0.038 mm |
| Adapter Sleeve Axial Movement Min | 0.018 in0.5 mm |
| Adapter Sleeve Axial Movement Max | 0.022 in0.6 mm |
| Post Install Int Radial Clearance Min | 0.0015 in0.038 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NJ2224EMA | NJ | N | 2500 | 2200 | 2.00 mm0.100 in | 2.00 mm0.100 in |
| 7226DB | 130 | 1.10 | 3.0 | 7226 | 7.150 | 4 000 |
| SDAF 23156 | ER826 | ER866-1 | 1 3/4 | A8967 | 4.7500 in | NO56 |
| 6012/ZZ/C3 | 0.39 Kg | 1.100 mm | 18.000 mm | 95.000 mm | 10000 rpm | 7200 rpm |
| 7313 BEGBP | 6300 | 3.65 | 86.5 | 116 | 7313 BEGBP | 65.000 |
| HK 1012 RS | HK 1012 RS | 12000 | - | 0.570 | 5.300 | 4.290 |
| 108710 | 108710 | 280.924 | 276.225 | 329.413 | 39.116 | 18.542 |
| BT2B 331854/HA1 | 285.7500 | 1200.000 | 18000.000 | 7210.000 | BT2B 331854/HA1 | 571.500 |
| SALKAC 10 M | 10.800 | 10.000 | 29.000 | 10.000 | 11.500 | 14.000 |
| *HJ217 | 85 | *HJ217 | 0.25 | 2.0 | - | - |
