Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
- QVVFC17V211S

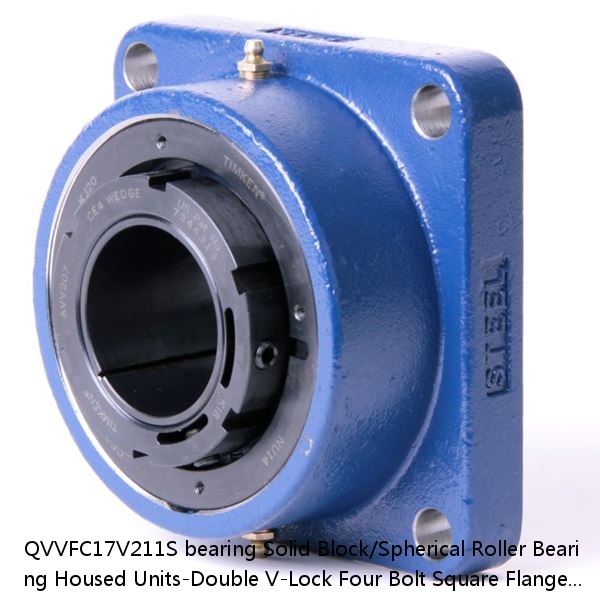

QVVFC17V211S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
QVVFC17V211S PDF download| QVVFC17V211S interchange timken QVVFC17V211S | |
| QVVFC17V211S cross reference timken QVVFC17V211S | |
| QVVFC17V211S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVFC17V211S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 30 lb13.6 Kg |
| r(min): | 0883450150415 0883450150507 0883450158107 0883450158213 0883450179621 0883450179713 0883450187800 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 2-11/16 in |
| Size: | Imperial |
| Weight： | 0.0037 in0.095 mm |
| Bearing Number： | 0.0047 in0.120 mm |
| Housing Construction： | 2400 rpm |
| UPC Code： | 1400 rpm |
| Shaft Size Type： | 1100 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22217 |
| Shaft Size | 2-11/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVFC17V211SB QVVFC17V211SC QVVFC17V211SEB QVVFC17V211SEC QVVFC17V211SEM QVVFC17V211SEN QVVFC17V211SEO QVVFC17V211SET QVVFC17V211SM QVVFC17V211SN QVVFC17V211SO QVVFC17V211ST |
| Locking Style | Double V-Lock |
| Weight | 30 lb13.6 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450150415 0883450150507 0883450158107 0883450158213 0883450179621 0883450179713 0883450187800 0883450189170 0883450280358 0883450280440 0883450284554 0883450284646 |
| Dimension BC | 9.45 in240 mm |
| Dimension A | 11.12 in282.4 mm |
| Dimension C | 4.19 in106.4 mm |
| Dimension D | 7.480 in190.000 mm |
| Dimension E | 6.68 in169.7 mm |
| Dimension F | 8.35 in212.1 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension G | 1 in25.4 mm |
| Dimension L | 3.61 in91.7 mm |
| Dimension N | 2.7500 in69.9 mm |
| Dimension RVV | 0.57 in14.5 mm |
| Dimension SVV | 4.18 in106.2 mm |
| C - Dynamic Load (Basic) | 66900 lb297 kN |
| C0 - Static Load | 71900 lb320 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1100 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1100 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 5MG-SEB24J1ZZ1C3/0G | 4 | 0.2 | 13 | 5 | 5MG-SEB24J1ZZ1C3/0G | - |
| 6817NR | - | 85 | 1.0 | 1.0 | 6817NR | 0.263 |
| HMV/73 | Tr365x5 | 15 mm | 31700 mm² | 367 mm | 436 mm | 57.00 mm |
| TAS 1 1/4 | 4.167 lb1.89 Kg | 1.843 in46.8 mm | 166.7 mm6.563 in | 95.3 mm3.752 in | 3440 lbf15300 N | 1 1/4 in31.8 mm |
| FNL 511 B + 2211 K + H 311 | FNL 511 B + 2211 K + H 31... | 192.000 | FNL 511 B | 65.000 | 172.500 | 50.000 |
| 6226/2RZ | 5.850 Kg | 3.000 mm | 40.000 mm | 230.000 mm | 5200 rpm | 3700 rpm |
| 23292EW33 | 460 | 7.5 | 709.00 | 570 | 450 | 830 |
| 32924 | 29.000 | 3600 | 3000 | 32.000 | 305.000 | 204.000 |
| 6022ZZX | 110 | 2.0 | 6022ZZX | 3800 | 170 | 3.55 |
| 231/600EW33 | 600 | 7.5 | 887.00 | 420 | 300 | 980 |
