Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Two-Bolt Pillow Block
  • QVPN20V307S

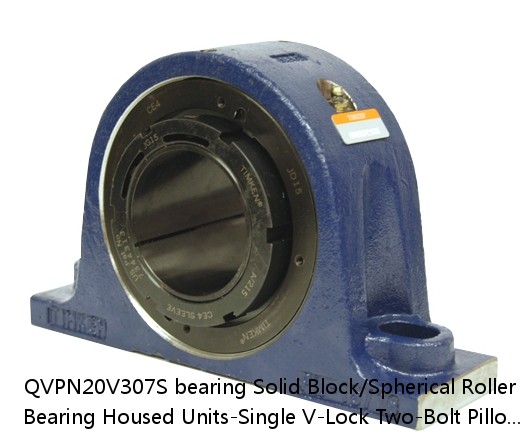

QVPN20V307S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Two-Bolt Pillow Block

QVPN20V307S interchange timken QVPN20V307S
QVPN20V307S cross reference timken QVPN20V307S
QVPN20V307S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVPN20V307S
d: 4.24
D: 2.85
B: 65 lb29.50 Kg
r(min): 0883450058315 0883450058346 0883450205801 0883450205948 0883450218221 0883450218375 0883450230643 08
r1(min): 0.0030 in0.076 mm
Width: 3-7/16 in
Size: Imperial
Weight: 0.0043 in0.110 mm
Bearing Number: 0.0055 in0.140 mm
Housing Construction: 2000 rpm
UPC Code: 1200 rpm
Shaft Size Type: 900 rpm
Engineering GroupMounted Bearing
Bearing Number22220
Shaft Size  3-7/16 in
Shaft Size TypeImperial
Full Timken Part NumberQVPN20V307SB QVPN20V307SC QVPN20V307SEB QVPN20V307SEC QVPN20V307SEM QVPN20V307SEN QVPN20V307SEO QVPN20V307SET QVPN20V307SM QVPN20V307SN QVPN20V307SO QVPN20V307ST QVPN20V307STHT
Locking StyleSingle V-Lock
Weight65 lb29.50 Kg
Housing ConstructionTwo-Bolt Pillow Block
UPC Code0883450058315 0883450058346 0883450205801 0883450205948 0883450218221 0883450218375 0883450230643 0883450230797 0883450239387 0883450239530 0883450244343 0883450244497 0883450434782
Dimension A4.41 in112.0 mm
Dimension B8.54 in216.9 mm
Dimension C4.89 in124.2 mm
Dimension D Max12.88 in327.2 mm
Dimension D Min10.88 in276.4 mm
Dimension F14.50 in368.3 mm
Dimension G3.420 in86.90 mm
Dimension H1.53 in38.9 mm
Dimension J (Bolt Size)0.875 in24 mm
Dimension L3.94 in100.1 mm
Dimension RV0.19 in4.8 mm
Dimension SV3.75 in95.3 mm
C0 - Static Load113000 lb502 kN
C - Dynamic Load (Basic)97700 lb435 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.85
Y2 - Geometry Factor4.24
Oil Lubrication - M/N Seal1200 rpm
Oil Lubrication - T Seal2000 rpm
Oil Lubrication - B/C/O Seal900 rpm
Grease Lubrication - M/N Seal1200 rpm
Grease Lubrication - T Seal1600 rpm
Grease Lubrication - B/C/O Seal900 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0043
Eng Internal Radial Clearance - Max0.0055
Pre Install Clearance Min0.0043 in0.110 mm
Pre Install Clearance Max0.0055 in0.140 mm
