Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Two-Bolt Pillow Block
- QVPN20V308S

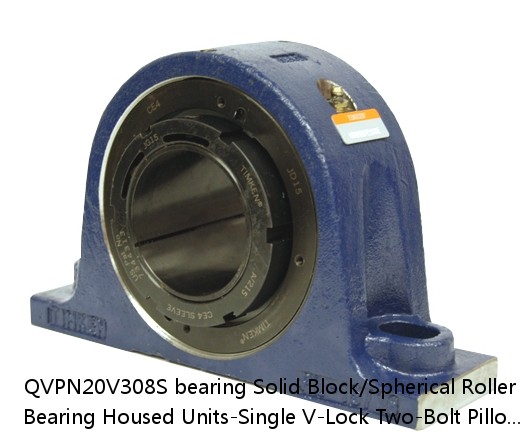

QVPN20V308S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Two-Bolt Pillow Block
QVPN20V308S PDF download| QVPN20V308S interchange timken QVPN20V308S | |
| QVPN20V308S cross reference timken QVPN20V308S | |
| QVPN20V308S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVPN20V308S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 65 lb29.50 Kg |
| r(min): | 0883450058414 0883450058445 0883450205818 0883450205955 0883450218238 0883450218382 0883450230650 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-1/2 in |
| Size: | Imperial |
| Weight： | 0.0043 in0.110 mm |
| Bearing Number： | 0.0055 in0.140 mm |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | 900 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVPN20V308SB QVPN20V308SC QVPN20V308SEB QVPN20V308SEC QVPN20V308SEM QVPN20V308SEN QVPN20V308SEO QVPN20V308SET QVPN20V308SM QVPN20V308SN QVPN20V308SO QVPN20V308ST |
| Locking Style | Single V-Lock |
| Weight | 65 lb29.50 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450058414 0883450058445 0883450205818 0883450205955 0883450218238 0883450218382 0883450230650 0883450230803 0883450239394 0883450239547 0883450244350 0883450244503 |
| Dimension A | 4.41 in112.0 mm |
| Dimension B | 8.54 in216.9 mm |
| Dimension C | 4.89 in124.2 mm |
| Dimension D Max | 12.88 in327.2 mm |
| Dimension D Min | 10.88 in276.4 mm |
| Dimension F | 14.50 in368.3 mm |
| Dimension G | 3.420 in86.90 mm |
| Dimension H | 1.53 in38.9 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension L | 3.94 in100.1 mm |
| Dimension RV | 0.19 in4.8 mm |
| Dimension SV | 3.75 in95.3 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NATV10XLL/3AS | 10 | NATV10XLL/3AS | 0.065 | 6500 | 15.0 | 23 |
| X33022M/Y33022M | 47.000 mm1.8504 in | 33022M | 2.03 mm0.08 in | 2.540 mm0.1 in | 299.7 | METRIC |
| QMC11J055S | 4.40 | 2.95 | 13 lb5.9 Kg | 0883450030199 0883450030229 0883450257879 0883450258258 0883450264044 0883450264051 0883450264068 08 | 0.0015 in0.038 mm | 55 mm |
| XAA32220CM/Y32220CM | 49.000 mm1.9291 in | Obsolete | 2.54 mm0.1 in | 6.100 mm0.24 in | 210.7 | METRIC |
| 24076RR | 5.0 | 620 | 470 | 24076RR | 560 | 486 |
| SNP/3172 x 13 1/2 | -0.007 in | 1:12 | S-3172 x 13 1/2 | 231K | 1.916 in | P-72 |
| HK 2018 RS | HK 2018 RS | 8000 | - | 2.360 | 20.400 | 12.300 |
| NU2356 | 280 | 6.0 | 6.0 | NU2356 | 222.000 | 1 100 |
| 51422 M | 1300 | 900 | 34.5 | 1220.0 | 410.0 | 0.00 |
| IR-68-1 | 9.525 | IR-68-1 | 13.0 | 15.875 | J-108 | BH-108 |
