Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four Bolt Square Flange Block
- QMFX15J075S

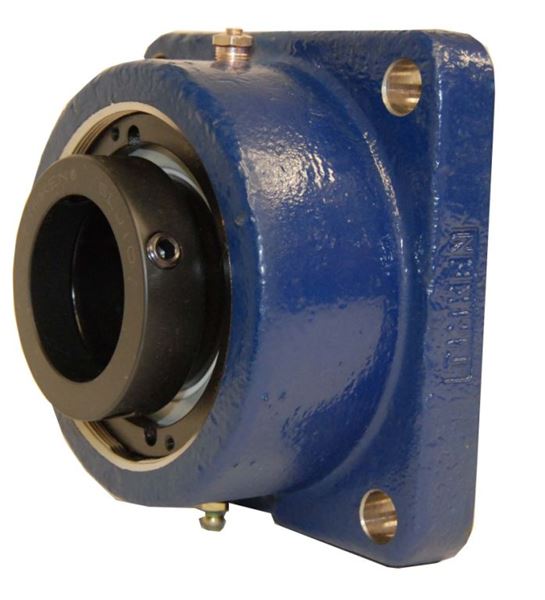

QMFX15J075S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four Bolt Square Flange Block
QMFX15J075S PDF download| QMFX15J075S interchange timken QMFX15J075S | |
| QMFX15J075S cross reference timken QMFX15J075S | |
| QMFX15J075S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMFX15J075S |
| d: | 4.48 |
| D: | 3.01 |
| B: | 17.0 lb7.7 Kg |
| r(min): | 0883450143868 0883450143875 0883450143882 0883450143899 0883450143905 0883450143912 0883450143929 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 75 mm |
| Size: | Metric |
| Weight： | 0.0020 in0.050 mm |
| Bearing Number： | 0.0031 in0.080 mm |
| Housing Construction： | 2900 rpm |
| UPC Code： | 1600 rpm |
| Shaft Size Type： | 1300 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMFX15J075SB QMFX15J075SC QMFX15J075SEB QMFX15J075SEC QMFX15J075SEM QMFX15J075SEN QMFX15J075SEO QMFX15J075SET QMFX15J075SM QMFX15J075SN QMFX15J075SO QMFX15J075ST |
| Locking Style | Eccentric |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450143868 0883450143875 0883450143882 0883450143899 0883450143905 0883450143912 0883450143929 0883450143936 0883450164832 0883450165334 0883450257138 0883450257558 |
| Dimension BC | 8.5 in215.9 mm |
| Dimension C | 4.02 in102.1 mm |
| Dimension D | 6.650 in168.90 mm |
| Dimension E | 6.01 in152.7 mm |
| Dimension F | 7.44 in189.00 mm |
| Dimension H | 1.06 in26.9 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension K | 1.25 in31.8 mm |
| Dimension L Exp | 3.86 in98 mm |
| Dimension L Fix | 3.78 in96 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension N | 3.0000 in76.200 mm |
| Dimension R | 0.16 in4.1 mm |
| Dimension S | 3.62 in91.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.01 |
| Y2 - Geometry Factor | 4.48 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 33287/462 | 30.162 | 73.025 | 3.2 | 3.6 | 4200 | 3200 |
| 7220BDF | 100 | 1.10 | 2.1 | 6.640 | 3000 | 2200 |
| NU2309ET7 | Standard | 45 | 1.5 | 1.5 | 1.5 | 1.5 |
| NK68/35A | 0.6 | NK68/35A | 6200 | 68 | 82 | 23.20 |
| LS350121EMN1KCZ1AL+(20.5) | 20.5 | - | - | - | - | - |
| FYR-2.15/16-18 | 3400 | 157.912 | 241.3 | 200.025 | 74.6125 | 97.63125 |
| 6206 | 0.2 Kg | 1.000 mm | 16.000 mm | 62.000 mm | 16000 rpm | 11000 rpm |
| BD-1210 EKTN9-H 210 | 10000 | 16000 | 9.150 | 26.500 | BD-1210 EKTN9-H 210 | 90.000 |
| 240/1180CAME4 | 240/1180CAME4 | 3180.00 | 1660 | 2.5 | 3.7 | 2.4 |
| 30TAB06-2NSE | 30 | 0.6 | 1 | 0.21 | 4650 | 62 |
