Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
- QVF14V060S

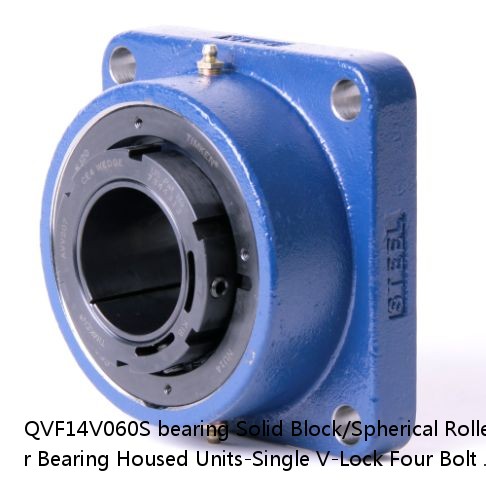

QVF14V060S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
QVF14V060S PDF download| QVF14V060S interchange timken QVF14V060S | |
| QVF14V060S cross reference timken QVF14V060S | |
| QVF14V060S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVF14V060S |
| d: | 4.22 |
| D: | 2.83 |
| B: | 17.0 lb7.7 Kg |
| r(min): | 0883450039291 0883450039321 0883450107051 0883450178327 0883450210676 0883450211055 0883450223096 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 60 mm |
| Size: | Metric |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0037 in0.094 mm |
| Housing Construction： | 3050 rpm |
| UPC Code： | 1700 rpm |
| Shaft Size Type： | 1400 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22214 |
| Shaft Size | 60 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVF14V060SB QVF14V060SC QVF14V060SEB QVF14V060SEC QVF14V060SEM QVF14V060SEN QVF14V060SEO QVF14V060SET QVF14V060SM QVF14V060SN QVF14V060SO QVF14V060ST |
| Locking Style | Single V-Lock |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450039291 0883450039321 0883450107051 0883450178327 0883450210676 0883450211055 0883450223096 0883450223478 0883450235594 0883450235976 0883450295642 0883450492522 |
| Dimension BC | 7.6 in193.0 mm |
| Dimension C | 3.7 in94 mm |
| Dimension D | 5.750 in146.10 mm |
| Dimension E | 5.38 in136.7 mm |
| Dimension F | 6.63 in168.4 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.35 in85.1 mm |
| Dimension L Exp | 3.43 in87.1 mm |
| Dimension L Fix | 3.35 in85.1 mm |
| Dimension N | 2.850 in72.40 mm |
| Dimension RV | 0.16 in4.1 mm |
| Dimension SV | 3.19 in81 mm |
| C0 - Static Load | 52000 lb231 kN |
| C - Dynamic Load (Basic) | 47800 lb213 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.83 |
| Y2 - Geometry Factor | 4.22 |
| Oil Lubrication - M/N Seal | 1700 rpm |
| Oil Lubrication - T Seal | 3050 rpm |
| Oil Lubrication - B/C/O Seal | 1400 rpm |
| Grease Lubrication - M/N Seal | 1700 rpm |
| Grease Lubrication - T Seal | 2600 rpm |
| Grease Lubrication - B/C/O Seal | 1400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0037 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| QVPH17V212S | 4.57 | 3.07 | 37.0 lb16.8 Kg | 0883450148191 0883450148436 0883450153041 0883450153195 0883450175357 0883450175821 0883450185257 08 | 0.0020 in0.051 mm | 2-3/4 in |
| UCHP206D1 | UCHP206D1 | M6x0.75 | 30 | 15.9 | UC206D1 | 21 |
| 14116/274 | 19.845 | 30.226 | 0.80 | 14116/274 | 7800 | 5900 |
| NU214EM & | HPS | 70 | 1.5 | 1.5 | 1.5 | 1.5 |
| 7324DB | 120 | 1.10 | 3.0 | 7324 | 14.700 | 3 900 |
| 22352R | 6.0 | 22352R | 780 | 590 | 540 | 363 |
| 7205DT | 25 | 0.60 | 1.0 | 0.270 | 12000 | 9500 |
| 30TAB06-2NSE | 30 | 0.6 | 1 | 0.21 | 4650 | 62 |
| 7409B FY | 45 | 1.000 | 2.000 | 6600 | 4800 | 7409BFY |
| SDAF 22336 | 3.7344 in | LOR223 | LOR234 | SR-0-36 | 1.5 in | 3.3750 in |
