Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
- QVF14V065S

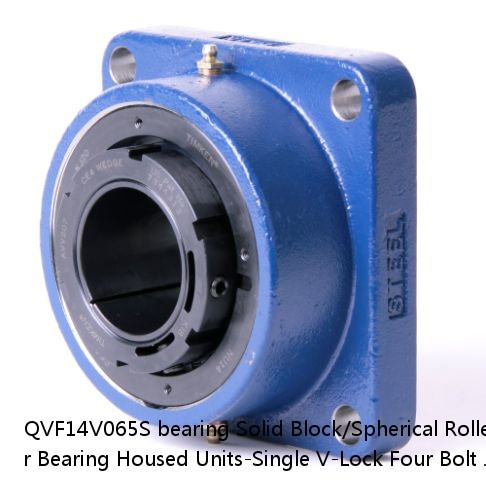

QVF14V065S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
QVF14V065S PDF download| QVF14V065S interchange timken QVF14V065S | |
| QVF14V065S cross reference timken QVF14V065S | |
| QVF14V065S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVF14V065S |
| d: | 4.22 |
| D: | 2.83 |
| B: | 17.0 lb7.7 Kg |
| r(min): | 0883450039390 0883450039420 0883450107112 0883450107150 0883450178358 0883450210706 0883450211086 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 65 mm |
| Size: | Metric |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0037 in0.094 mm |
| Housing Construction： | 3050 rpm |
| UPC Code： | 1700 rpm |
| Shaft Size Type： | 1400 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22214 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVF14V065SB QVF14V065SC QVF14V065SEB QVF14V065SEC QVF14V065SEM QVF14V065SEN QVF14V065SEO QVF14V065SET QVF14V065SM QVF14V065SN QVF14V065SO QVF14V065ST |
| Locking Style | Single V-Lock |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450039390 0883450039420 0883450107112 0883450107150 0883450178358 0883450210706 0883450211086 0883450223126 0883450223508 0883450235624 0883450236003 0883450295659 |
| Dimension BC | 7.6 in193.0 mm |
| Dimension C | 3.7 in94 mm |
| Dimension D | 5.750 in146.10 mm |
| Dimension E | 5.38 in136.7 mm |
| Dimension F | 6.63 in168.4 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.35 in85.1 mm |
| Dimension L Exp | 3.43 in87.1 mm |
| Dimension L Fix | 3.35 in85.1 mm |
| Dimension N | 2.850 in72.40 mm |
| Dimension RV | 0.16 in4.1 mm |
| Dimension SV | 3.19 in81 mm |
| C0 - Static Load | 52000 lb231 kN |
| C - Dynamic Load (Basic) | 47800 lb213 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.83 |
| Y2 - Geometry Factor | 4.22 |
| Oil Lubrication - M/N Seal | 1700 rpm |
| Oil Lubrication - T Seal | 3050 rpm |
| Oil Lubrication - B/C/O Seal | 1400 rpm |
| Grease Lubrication - M/N Seal | 1700 rpm |
| Grease Lubrication - T Seal | 2600 rpm |
| Grease Lubrication - B/C/O Seal | 1400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0037 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NH300125BNN1PCZ1AL+(22.5) | NH30BN | 22.5 | - | - | - | - |
| 623/HR22Q2 | 3960 | 0.025 | 0.030 | 623/HR22Q2 | 3.000 | 10.000 |
| 29420EJ | 10.10 Kg22.4 lb | 1800 rpm | 32.00 mm1.260 in | 58.00 mm2.280 in | 67.00 mm2.638 in | 2390 kN536000 lbf |
| UFL006J | 30 | Light-duty(0) | UFL006J | Standard | - | - |
| 25582/20 | 23.812 | 44.450 | 5.20 | 25582/20 | 6300 | 4800 |
| UCFC210/31 | 6.4 lb2.90 Kg | 087796140400 | 165.00 mm6.496 in | 5238 lbf23300 N | 1 15/16 in | 12.00 mm0.472 in |
| CFKR 80 VUU | 438.0 | 30 | 1.0 | 4 | 6 | 49 |
| 231/560KYMBW906A | 2.28 | 3.47 | 2.33 | 310 | 290 | 6.000 mm0.240 in |
| BHA 2016Z | 31.750 | BHA 2016Z | 66.0 | 31.750 | 41.275 | 33200 |
| K20x25x40ZW | K20x25x40ZW | 0.033 | 20000 | 13000 | 20 | 25 |
