Single V-Lock Solid-Block Housed Units

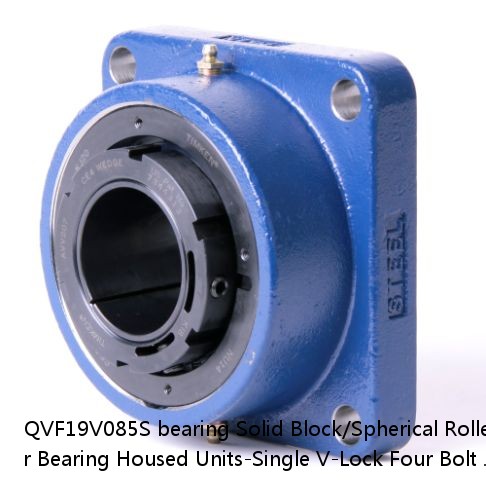

QVF19V085S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block

QVF19V085S interchange timken QVF19V085S
QVF19V085S cross reference timken QVF19V085S
QVF19V085S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	QVF19V085S
d:	4.17
D:	2.80
B:	35 lb15.90 Kg
r(min):	0883450091640 0883450091770 0883450104623 0883450104753 0883450110266 0883450110464 0883450120555 08
r1(min):	0.0030 in0.076 mm
Width:	85 mm
Size:	Metric
Weight：	0.0043 in0.110 mm
Bearing Number：	0.0055 in0.140 mm
Housing Construction：	2200 rpm
UPC Code：	1300 rpm
Shaft Size Type：	1000 rpm

Engineering Group	Mounted Bearing
Bearing Number	22219
Shaft Size	85 mm
Shaft Size Type	Metric
Full Timken Part Number	QVF19V085SB QVF19V085SC QVF19V085SEB QVF19V085SEC QVF19V085SEM QVF19V085SEN QVF19V085SEO QVF19V085SET QVF19V085SM QVF19V085SN QVF19V085SO QVF19V085ST
Locking Style	Single V-Lock
Weight	35 lb15.90 Kg
Housing Construction	Four-Bolt Square Flange
UPC Code	0883450091640 0883450091770 0883450104623 0883450104753 0883450110266 0883450110464 0883450120555 0883450120685 0883450134408 0883450134583 0883450140843 0883450141369
Dimension BC	9.91 in251.7 mm
Dimension C	4.9 in124.5 mm
Dimension D	7.630 in193.80 mm
Dimension E	7.000 in177.8 mm
Dimension F	8.63 in219.2 mm
Dimension H	1.31 in33.3 mm
Dimension J (Bolt Size)	0.75 in20 mm
Dimension L	3.87 in98.3 mm
Dimension L Exp	3.95 in100.3 mm
Dimension L Fix	3.87 in98.3 mm
Dimension N	3.310 in84.1 mm
Dimension RV	0.18 in4.6 mm
Dimension SV	3.69 in93.7 mm
C0 - Static Load	99000 lb441 kN
C - Dynamic Load (Basic)	86600 lb385 kN
e - Geometry Factor	0.24
Y1 - Geometry Factor	2.80
Y2 - Geometry Factor	4.17
Oil Lubrication - M/N Seal	1300 rpm
Oil Lubrication - T Seal	2200 rpm
Oil Lubrication - B/C/O Seal	1000 rpm
Grease Lubrication - M/N Seal	1300 rpm
Grease Lubrication - T Seal	1800 rpm
Grease Lubrication - B/C/O Seal	950 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0043
Eng Internal Radial Clearance - Max	0.0055
Pre Install Clearance Min	0.0043 in0.110 mm
Pre Install Clearance Max	0.0055 in0.140 mm
