Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
  • QVF19V303S

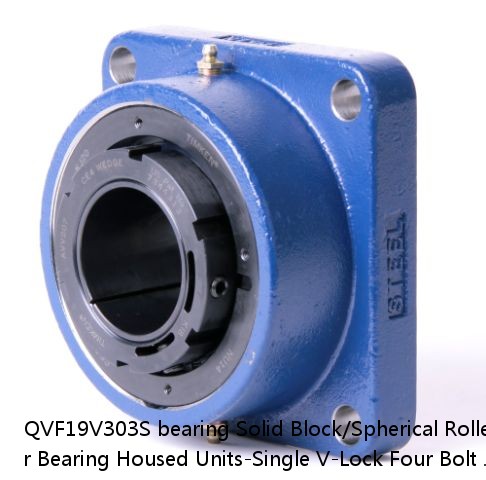

QVF19V303S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block

QVF19V303S interchange timken QVF19V303S
QVF19V303S cross reference timken QVF19V303S
QVF19V303S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVF19V303S
d: 4.17
D: 2.80
B: 35 lb15.90 Kg
r(min): 0883450040495 0883450040525 0883450107778 0883450107815 0883450178426 0883450210775 0883450211154 08
r1(min): 0.0030 in0.076 mm
Width: 3-3/16 in
Size: Imperial
Weight: 0.0043 in0.110 mm
Bearing Number: 0.0055 in0.140 mm
Housing Construction: 2200 rpm
UPC Code: 1300 rpm
Shaft Size Type: 1000 rpm
Engineering GroupMounted Bearing
Bearing Number22219
Shaft Size  3-3/16 in
Shaft Size TypeImperial
Full Timken Part NumberQVF19V303SB QVF19V303SC QVF19V303SEB QVF19V303SEC QVF19V303SEM QVF19V303SEN QVF19V303SEO QVF19V303SET QVF19V303SM QVF19V303SN QVF19V303SO QVF19V303ST
Locking StyleSingle V-Lock
Weight35 lb15.90 Kg
Housing ConstructionFour-Bolt Square Flange
UPC Code0883450040495 0883450040525 0883450107778 0883450107815 0883450178426 0883450210775 0883450211154 0883450223195 0883450223577 0883450235693 0883450236072 0883450295765
Dimension BC9.91 in251.7 mm
Dimension C4.9 in124.5 mm
Dimension D7.630 in193.80 mm
Dimension E7.000 in177.8 mm
Dimension F8.63 in219.2 mm
Dimension H1.31 in33.3 mm
Dimension J (Bolt Size)0.75 in20 mm
Dimension L3.87 in98.3 mm
Dimension L Exp3.95 in100.3 mm
Dimension L Fix3.87 in98.3 mm
Dimension N3.310 in84.1 mm
Dimension RV0.18 in4.6 mm
Dimension SV3.69 in93.7 mm
C0 - Static Load99000 lb441 kN
C - Dynamic Load (Basic)86600 lb385 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.80
Y2 - Geometry Factor4.17
Oil Lubrication - M/N Seal1300 rpm
Oil Lubrication - T Seal2200 rpm
Oil Lubrication - B/C/O Seal1000 rpm
Grease Lubrication - M/N Seal1300 rpm
Grease Lubrication - T Seal1800 rpm
Grease Lubrication - B/C/O Seal950 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0043
Eng Internal Radial Clearance - Max0.0055
Pre Install Clearance Min0.0043 in0.110 mm
Pre Install Clearance Max0.0055 in0.140 mm
