Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
  • QVF19V308S

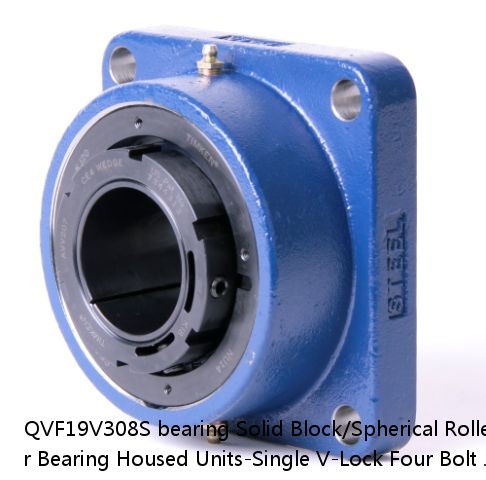

QVF19V308S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block

QVF19V308S interchange timken QVF19V308S
QVF19V308S cross reference timken QVF19V308S
QVF19V308S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVF19V308S
d: 4.17
D: 2.80
B: 35 lb15.90 Kg
r(min): 0883450040792 0883450040822 0883450107952 0883450107990 0883450178464 0883450210812 0883450211192 08
r1(min): 0.0030 in0.076 mm
Width: 3-1/2 in
Size: Imperial
Weight: 0.0043 in0.110 mm
Bearing Number: 0.0055 in0.140 mm
Housing Construction: 2200 rpm
UPC Code: 1300 rpm
Shaft Size Type: 1000 rpm
Engineering GroupMounted Bearing
Bearing Number22219
Shaft Size  3-1/2 in
Shaft Size TypeImperial
Full Timken Part NumberQVF19V308SB QVF19V308SC QVF19V308SEB QVF19V308SEC QVF19V308SEM QVF19V308SEN QVF19V308SEO QVF19V308SET QVF19V308SM QVF19V308SN QVF19V308SO QVF19V308ST
Locking StyleSingle V-Lock
Weight35 lb15.90 Kg
Housing ConstructionFour-Bolt Square Flange
UPC Code0883450040792 0883450040822 0883450107952 0883450107990 0883450178464 0883450210812 0883450211192 0883450223232 0883450223614 0883450235730 0883450236119 0883450295796
Dimension BC9.91 in251.7 mm
Dimension C4.9 in124.5 mm
Dimension D7.630 in193.80 mm
Dimension E7.000 in177.8 mm
Dimension F8.63 in219.2 mm
Dimension H1.31 in33.3 mm
Dimension J (Bolt Size)0.75 in20 mm
Dimension L3.87 in98.3 mm
Dimension L Exp3.95 in100.3 mm
Dimension L Fix3.87 in98.3 mm
Dimension N3.310 in84.1 mm
Dimension RV0.18 in4.6 mm
Dimension SV3.69 in93.7 mm
C0 - Static Load99000 lb441 kN
C - Dynamic Load (Basic)86600 lb385 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.80
Y2 - Geometry Factor4.17
Oil Lubrication - M/N Seal1300 rpm
Oil Lubrication - T Seal2200 rpm
Oil Lubrication - B/C/O Seal1000 rpm
Grease Lubrication - M/N Seal1300 rpm
Grease Lubrication - T Seal1800 rpm
Grease Lubrication - B/C/O Seal950 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0043
Eng Internal Radial Clearance - Max0.0055
Pre Install Clearance Min0.0043 in0.110 mm
Pre Install Clearance Max0.0055 in0.140 mm
