Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
  • QVF26V408S

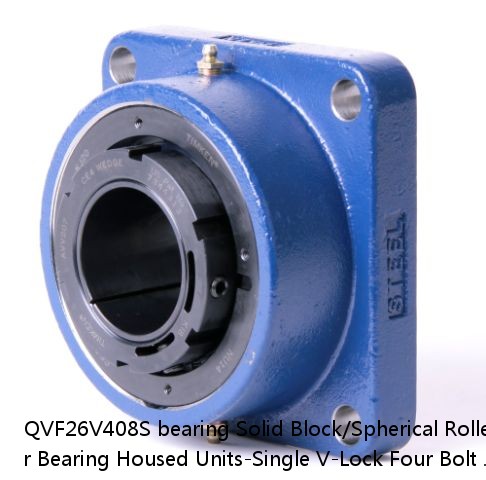

QVF26V408S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block

QVF26V408S interchange timken QVF26V408S
QVF26V408S cross reference timken QVF26V408S
QVF26V408S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVF26V408S
d: 3.61
D: 2.43
B: 63.0 lb28.6 Kg
r(min): 0883450091664 0883450091794 0883450104647 0883450104784 0883450110303 0883450110525 0883450120579 08
r1(min): 0.0050 in0.127 mm
Width: 4-1/2 in
Size: Imperial
Weight: 0.0053 in0.135 mm
Bearing Number: 0.0067 in0.170 mm
Housing Construction: 1500 rpm
UPC Code: 700 rpm
Shaft Size Type: 400 rpm
Engineering GroupMounted Bearing
Bearing Number22226
Shaft Size  4-1/2 in
Shaft Size TypeImperial
Full Timken Part NumberQVF26V408SB QVF26V408SC QVF26V408SEB QVF26V408SEC QVF26V408SEM QVF26V408SEN QVF26V408SEO QVF26V408SET QVF26V408SM QVF26V408SN QVF26V408SO QVF26V408ST
Locking StyleSingle V-Lock
Weight63.0 lb28.6 Kg
Housing ConstructionFour-Bolt Square Flange
UPC Code0883450091664 0883450091794 0883450104647 0883450104784 0883450110303 0883450110525 0883450120579 0883450120708 0883450134439 0883450134606 0883450140867 0883450141468
Dimension BC12.38 in314.5 mm
Dimension C6.88 in174.8 mm
Dimension D10.110 in256.80 mm
Dimension E8.75 in222.3 mm
Dimension F10.88 in276.4 mm
Dimension H1.50 in38.1 mm
Dimension J (Bolt Size)0.875 in24 mm
Dimension L5.53 in140.5 mm
Dimension L Exp5.62 in142.7 mm
Dimension L Fix5.53 in140.5 mm
Dimension N4.210 in106.90 mm
Dimension RV0.29 in7.4 mm
Dimension SV5.82 in147.8 mm
C0 - Static Load212000 lb945 kN
C - Dynamic Load (Basic)170000 lb757 kN
e - Geometry Factor0.28
Y1 - Geometry Factor2.43
Y2 - Geometry Factor3.61
Oil Lubrication - M/N Seal700 rpm
Oil Lubrication - T Seal1500 rpm
Oil Lubrication - B/C/O Seal400 rpm
Grease Lubrication - M/N Seal700 rpm
Grease Lubrication - T Seal1000 rpm
Grease Lubrication - B/C/O Seal400 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0050 in0.127 mm
Eng Internal Radial Clearance - Min0.0053
Eng Internal Radial Clearance - Max0.0067
Pre Install Clearance Min0.0053 in0.135 mm
Pre Install Clearance Max0.0067 in0.170 mm
