Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
  • QVF26V407S

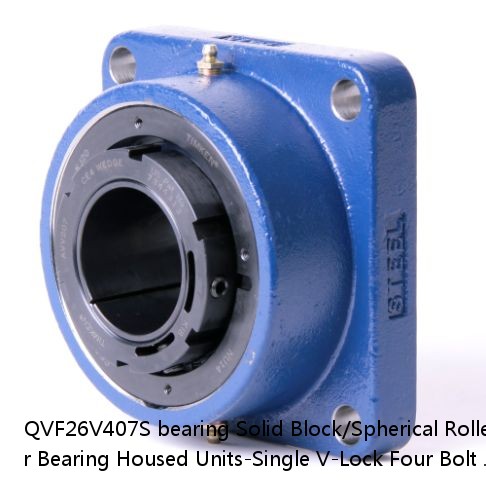

QVF26V407S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block

QVF26V407S interchange timken QVF26V407S
QVF26V407S cross reference timken QVF26V407S
QVF26V407S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVF26V407S
d: 3.61
D: 2.43
B: 63.0 lb28.6 Kg
r(min): 0883450091657 0883450091787 0883450104630 0883450104760 0883450110280 0883450110488 0883450120562 08
r1(min): 0.0050 in0.127 mm
Width: 4-7/16 in
Size: Imperial
Weight: 0.0053 in0.135 mm
Bearing Number: 0.0067 in0.170 mm
Housing Construction: 1500 rpm
UPC Code: 700 rpm
Shaft Size Type: 400 rpm
Engineering GroupMounted Bearing
Bearing Number22226
Shaft Size  4-7/16 in
Shaft Size TypeImperial
Full Timken Part NumberQVF26V407SB QVF26V407SC QVF26V407SEB QVF26V407SEC QVF26V407SEM QVF26V407SEN QVF26V407SEO QVF26V407SET QVF26V407SM QVF26V407SN QVF26V407SO QVF26V407ST
Locking StyleSingle V-Lock
Weight63.0 lb28.6 Kg
Housing ConstructionFour-Bolt Square Flange
UPC Code0883450091657 0883450091787 0883450104630 0883450104760 0883450110280 0883450110488 0883450120562 0883450120692 0883450134415 0883450134590 0883450140850 0883450141451
Dimension BC12.38 in314.5 mm
Dimension C6.88 in174.8 mm
Dimension D10.110 in256.80 mm
Dimension E8.75 in222.3 mm
Dimension F10.88 in276.4 mm
Dimension H1.50 in38.1 mm
Dimension J (Bolt Size)0.875 in24 mm
Dimension L5.53 in140.5 mm
Dimension L Exp5.62 in142.7 mm
Dimension L Fix5.53 in140.5 mm
Dimension N4.210 in106.90 mm
Dimension RV0.29 in7.4 mm
Dimension SV5.82 in147.8 mm
C0 - Static Load212000 lb945 kN
C - Dynamic Load (Basic)170000 lb757 kN
e - Geometry Factor0.28
Y1 - Geometry Factor2.43
Y2 - Geometry Factor3.61
Oil Lubrication - M/N Seal700 rpm
Oil Lubrication - T Seal1500 rpm
Oil Lubrication - B/C/O Seal400 rpm
Grease Lubrication - M/N Seal700 rpm
Grease Lubrication - T Seal1000 rpm
Grease Lubrication - B/C/O Seal400 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0050 in0.127 mm
Eng Internal Radial Clearance - Min0.0053
Eng Internal Radial Clearance - Max0.0067
Pre Install Clearance Min0.0053 in0.135 mm
Pre Install Clearance Max0.0067 in0.170 mm
