Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- DVF20K307S

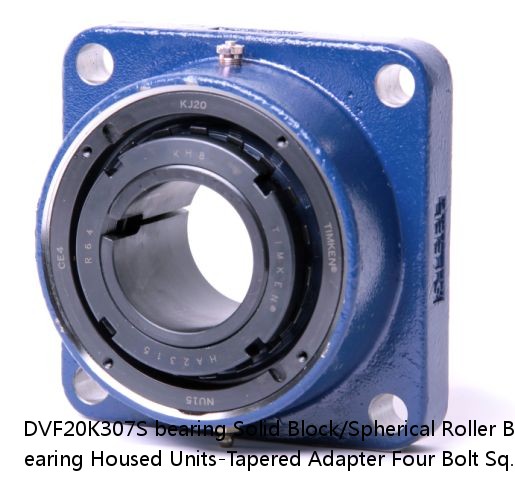

DVF20K307S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
DVF20K307S interchange timken DVF20K307S | |
DVF20K307S cross reference timken DVF20K307S | |
DVF20K307S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | DVF20K307S |
d: | 3.80 |
D: | 2.55 |
B: | 39.0 lb17.7 Kg |
r(min): | 0.0040 in0.102 mm |
r1(min): | 3-7/16 in |
Width: | Imperial |
Size: | 0.0043 in0.110 mm |
Weight: | 0.0055 in0.140 mm |
Bearing Number: | 2000 rpm |
Housing Construction: | 1200 rpm |
UPC Code: | 900 rpm |
Shaft Size Type: | Tapered Adapter |
Engineering Group | Mounted Bearing |
Bearing Number | 22220 |
Shaft Size | 3-7/16 in |
Shaft Size Type | Imperial |
Full Timken Part Number | DVF20K307SB DVF20K307SC DVF20K307SEB DVF20K307SEC DVF20K307SEM DVF20K307SEN DVF20K307SEO DVF20K307SET DVF20K307SM DVF20K307SN DVF20K307SO DVF20K307ST |
Locking Style | Tapered Adapter |
Weight | 39.0 lb17.7 Kg |
Housing Construction | Four-Bolt Square Flange |
UPC Code | 0883450006828 0883450006835 0883450006859 0883450006866 0883450006873 0883450006880 0883450006897 0883450006903 0883450196550 0883450196758 0883450274067 0883450274265 |
Dimension BC | 9.9 in251.5 mm |
Dimension C | 5.12 in130 mm |
Dimension D | 7.630 in193.80 mm |
Dimension E | 7.000 in177.8 mm |
Dimension F | 8.63 in219.2 mm |
Dimension H | 1.31 in33.3 mm |
Dimension J (Bolt Size) | 0.75 in20 mm |
Dimension L | 3.97 in100.9 mm |
Dimension M | 2.3 in58.4 mm |
Dimension N | 3.310 in84.1 mm |
Dimension S | 3.82 in97 mm |
C0 - Static Load | 113000 lb502 kN |
C - Dynamic Load (Basic) | 97700 lb435 kN |
e - Geometry Factor | 0.26 |
Y1 - Geometry Factor | 2.55 |
Y2 - Geometry Factor | 3.80 |
Oil Lubrication - M/N Seal | 1200 rpm |
Oil Lubrication - T Seal | 2000 rpm |
Oil Lubrication - B/C/O Seal | 900 rpm |
Grease Lubrication - M/N Seal | 1200 rpm |
Grease Lubrication - T Seal | 1600 rpm |
Grease Lubrication - B/C/O Seal | 900 rpm |
Float | 0.083 in2.108 mm |
Shaft Tolerance | 0.0040 in0.102 mm |
Pre Install Clearance Min | 0.0043 in0.110 mm |
Pre Install Clearance Max | 0.0055 in0.140 mm |
Int Radial Clearance Reduction Min | 0.0018 in0.046 mm |
Int Radial Clearance Reduction Max | 0.0025 in0.064 mm |
Adapter Sleeve Axial Movement Min | 0.027 in0.7 mm |
