Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- DVF11K050S

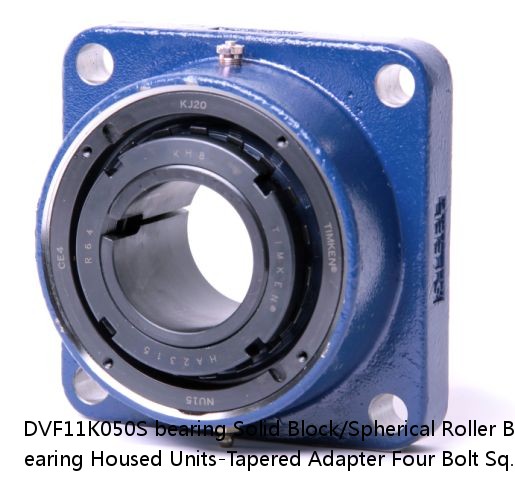

DVF11K050S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
DVF11K050S PDF download| DVF11K050S interchange timken DVF11K050S | |
| DVF11K050S cross reference timken DVF11K050S | |
| DVF11K050S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | DVF11K050S |
| d: | 3.93 |
| D: | 2.64 |
| B: | 12 lb5.4 Kg |
| r(min): | 0.0030 in0.076 mm |
| r1(min): | 50 mm |
| Width: | Metric |
| Size: | 0.0030 in0.075 mm |
| Weight： | 0.0037 in0.094 mm |
| Bearing Number： | 3800 rpm |
| Housing Construction： | 2200 rpm |
| UPC Code： | 1800 rpm |
| Shaft Size Type： | Tapered Adapter |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22211 |
| Shaft Size | 50 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | DVF11K050SB DVF11K050SC DVF11K050SEB DVF11K050SEC DVF11K050SEM DVF11K050SEN DVF11K050SEO DVF11K050SET DVF11K050SM DVF11K050SN DVF11K050SO DVF11K050ST |
| Locking Style | Tapered Adapter |
| Weight | 12 lb5.4 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450005524 0883450005531 0883450005555 0883450005562 0883450005579 0883450005586 0883450005593 0883450005609 0883450196451 0883450196659 0883450273961 0883450274166 |
| Dimension BC | 6.19 in157.2 mm |
| Dimension C | 2.95 in74.9 mm |
| Dimension D | 4.800 in121.90 mm |
| Dimension E | 4.38 in111.3 mm |
| Dimension F | 5.500 in139.70 mm |
| Dimension H | 0.88 in22.4 mm |
| Dimension J (Bolt Size) | 0.5 in12 mm |
| Dimension L | 2.81 in71.5 mm |
| Dimension M | 1.4 in35.6 mm |
| Dimension N | 2.560 in65.00 mm |
| Dimension S | 2.32 in58.9 mm |
| C0 - Static Load | 31900 lb142 kN |
| C - Dynamic Load (Basic) | 31400 lb140 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.64 |
| Y2 - Geometry Factor | 3.93 |
| Oil Lubrication - M/N Seal | 2200 rpm |
| Oil Lubrication - T Seal | 3800 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2200 rpm |
| Grease Lubrication - T Seal | 3200 rpm |
| Grease Lubrication - B/C/O Seal | 1600 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| Int Radial Clearance Reduction Min | 0.0012 in0.030 mm |
| Int Radial Clearance Reduction Max | 0.0015 in0.038 mm |
| Adapter Sleeve Axial Movement Min | 0.018 in0.5 mm |
| Adapter Sleeve Axial Movement Max | 0.022 in0.6 mm |
| Post Install Int Radial Clearance Min | 0.0015 in0.038 mm |
