Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- DVF11K115S

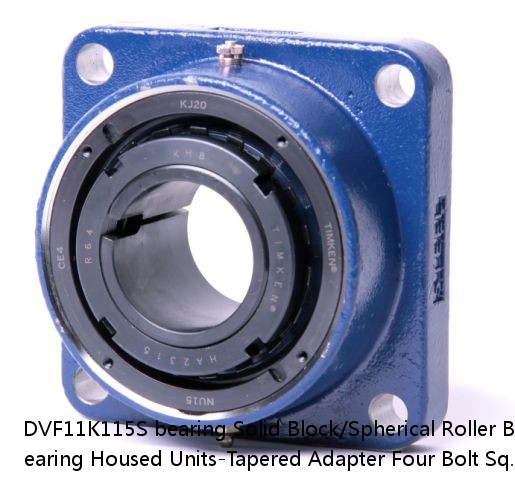

DVF11K115S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
DVF11K115S interchange timken DVF11K115S | |
DVF11K115S cross reference timken DVF11K115S | |
DVF11K115S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | DVF11K115S |
d: | 3.93 |
D: | 2.64 |
B: | 12 lb5.4 Kg |
r(min): | 0.0030 in0.076 mm |
r1(min): | 1-15/16 in |
Width: | Imperial |
Size: | 0.0030 in0.075 mm |
Weight: | 0.0037 in0.094 mm |
Bearing Number: | 3800 rpm |
Housing Construction: | 2200 rpm |
UPC Code: | 1800 rpm |
Shaft Size Type: | Tapered Adapter |
Engineering Group | Mounted Bearing |
Bearing Number | 22211 |
Shaft Size | 1-15/16 in |
Shaft Size Type | Imperial |
Full Timken Part Number | DVF11K115SB DVF11K115SC DVF11K115SEB DVF11K115SEC DVF11K115SEM DVF11K115SEN DVF11K115SEO DVF11K115SET DVF11K115SM DVF11K115SN DVF11K115SO DVF11K115ST |
Locking Style | Tapered Adapter |
Weight | 12 lb5.4 Kg |
Housing Construction | Four-Bolt Square Flange |
UPC Code | 0883450005623 0883450005630 0883450005654 0883450005661 0883450005678 0883450005685 0883450005692 0883450005708 0883450196437 0883450196635 0883450273947 0883450274142 |
Dimension BC | 6.19 in157.2 mm |
Dimension C | 2.95 in74.9 mm |
Dimension D | 4.800 in121.90 mm |
Dimension E | 4.38 in111.3 mm |
Dimension F | 5.500 in139.70 mm |
Dimension H | 0.88 in22.4 mm |
Dimension J (Bolt Size) | 0.5 in12 mm |
Dimension L | 2.81 in71.5 mm |
Dimension M | 1.4 in35.6 mm |
Dimension N | 2.560 in65.00 mm |
Dimension S | 2.32 in58.9 mm |
C0 - Static Load | 31900 lb142 kN |
C - Dynamic Load (Basic) | 31400 lb140 kN |
e - Geometry Factor | 0.26 |
Y1 - Geometry Factor | 2.64 |
Y2 - Geometry Factor | 3.93 |
Oil Lubrication - M/N Seal | 2200 rpm |
Oil Lubrication - T Seal | 3800 rpm |
Oil Lubrication - B/C/O Seal | 1800 rpm |
Grease Lubrication - M/N Seal | 2200 rpm |
Grease Lubrication - T Seal | 3200 rpm |
Grease Lubrication - B/C/O Seal | 1600 rpm |
Float | 0.050 in1.270 mm |
Shaft Tolerance | 0.0030 in0.076 mm |
Pre Install Clearance Min | 0.0030 in0.075 mm |
Pre Install Clearance Max | 0.0037 in0.094 mm |
Int Radial Clearance Reduction Min | 0.0012 in0.030 mm |
Int Radial Clearance Reduction Max | 0.0015 in0.038 mm |
Adapter Sleeve Axial Movement Min | 0.018 in0.5 mm |
Adapter Sleeve Axial Movement Max | 0.022 in0.6 mm |
Post Install Int Radial Clearance Min | 0.0015 in0.038 mm |
