Tapered Adapter Solid-Block Housed Units

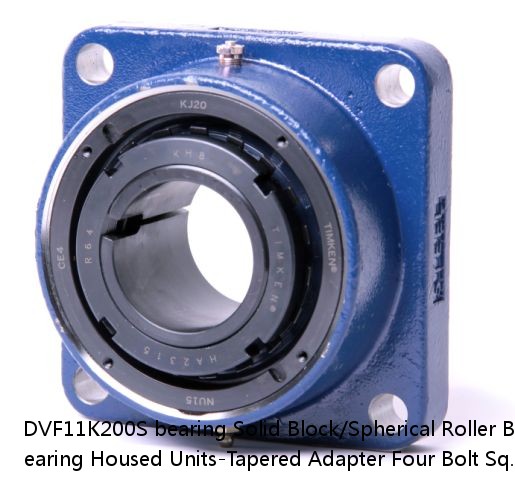

DVF11K200S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block

DVF11K200S interchange timken DVF11K200S
DVF11K200S cross reference timken DVF11K200S
DVF11K200S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	DVF11K200S
d:	3.93
D:	2.64
B:	12 lb5.4 Kg
r(min):	0.0030 in0.076 mm
r1(min):	2 in
Width:	Imperial
Size:	0.0030 in0.075 mm
Weight：	0.0037 in0.094 mm
Bearing Number：	3800 rpm
Housing Construction：	2200 rpm
UPC Code：	1800 rpm
Shaft Size Type：	Tapered Adapter

Engineering Group	Mounted Bearing
Bearing Number	22211
Shaft Size	2 in
Shaft Size Type	Imperial
Full Timken Part Number	DVF11K200SB DVF11K200SC DVF11K200SEB DVF11K200SEC DVF11K200SEM DVF11K200SEN DVF11K200SEO DVF11K200SET DVF11K200SM DVF11K200SN DVF11K200SO DVF11K200ST
Locking Style	Tapered Adapter
Weight	12 lb5.4 Kg
Housing Construction	Four-Bolt Square Flange
UPC Code	0883450005722 0883450005739 0883450005753 0883450005760 0883450005777 0883450005784 0883450005791 0883450005807 0883450196444 0883450196642 0883450273954 0883450274159
Dimension BC	6.19 in157.2 mm
Dimension C	2.95 in74.9 mm
Dimension D	4.800 in121.90 mm
Dimension E	4.38 in111.3 mm
Dimension F	5.500 in139.70 mm
Dimension H	0.88 in22.4 mm
Dimension J (Bolt Size)	0.5 in12 mm
Dimension L	2.81 in71.5 mm
Dimension M	1.4 in35.6 mm
Dimension N	2.560 in65.00 mm
Dimension S	2.32 in58.9 mm
C0 - Static Load	31900 lb142 kN
C - Dynamic Load (Basic)	31400 lb140 kN
e - Geometry Factor	0.26
Y1 - Geometry Factor	2.64
Y2 - Geometry Factor	3.93
Oil Lubrication - M/N Seal	2200 rpm
Oil Lubrication - T Seal	3800 rpm
Oil Lubrication - B/C/O Seal	1800 rpm
Grease Lubrication - M/N Seal	2200 rpm
Grease Lubrication - T Seal	3200 rpm
Grease Lubrication - B/C/O Seal	1600 rpm
Float	0.050 in1.270 mm
Shaft Tolerance	0.0030 in0.076 mm
Pre Install Clearance Min	0.0030 in0.075 mm
Pre Install Clearance Max	0.0037 in0.094 mm
Int Radial Clearance Reduction Min	0.0012 in0.030 mm
Int Radial Clearance Reduction Max	0.0015 in0.038 mm
Adapter Sleeve Axial Movement Min	0.018 in0.5 mm
Adapter Sleeve Axial Movement Max	0.022 in0.6 mm
Post Install Int Radial Clearance Min	0.0015 in0.038 mm
