Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- DVF22K100S

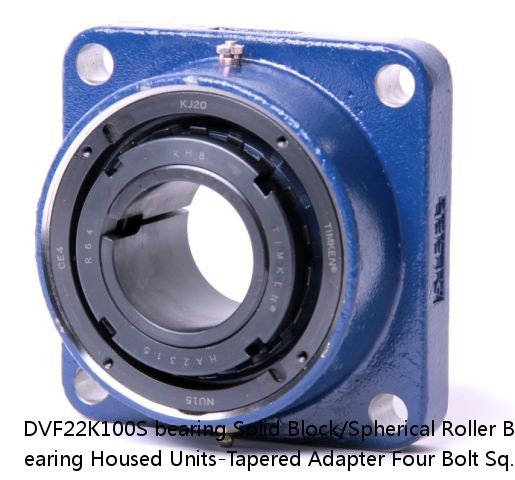

DVF22K100S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
DVF22K100S interchange timken DVF22K100S | |
DVF22K100S cross reference timken DVF22K100S | |
DVF22K100S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | DVF22K100S |
d: | 3.80 |
D: | 2.55 |
B: | 53.0 lb24.0 Kg |
r(min): | 0.0040 in0.102 mm |
r1(min): | 100 mm |
Width: | Metric |
Size: | 0.0053 in0.135 mm |
Weight: | 0.0067 in0.170 mm |
Bearing Number: | 1700 rpm |
Housing Construction: | 900 rpm |
UPC Code: | 600 rpm |
Shaft Size Type: | Tapered Adapter |
Engineering Group | Mounted Bearing |
Bearing Number | 22222 |
Shaft Size | 100 mm |
Shaft Size Type | Metric |
Full Timken Part Number | DVF22K100SB DVF22K100SC DVF22K100SEB DVF22K100SEC DVF22K100SEM DVF22K100SEN DVF22K100SEO DVF22K100SET DVF22K100SM DVF22K100SN DVF22K100SO DVF22K100ST |
Locking Style | Tapered Adapter |
Weight | 53.0 lb24.0 Kg |
Housing Construction | Four-Bolt Square Flange |
UPC Code | 0883450007023 0883450007030 0883450007054 0883450007061 0883450007078 0883450007085 0883450007092 0883450007108 0883450196604 0883450196802 0883450274111 0883450274319 |
Dimension BC | 10.96 in278.4 mm |
Dimension C | 5.71 in145 mm |
Dimension D | 8.5000 in215.900 mm |
Dimension E | 7.75 in196.9 mm |
Dimension F | 9.97 in253.2 mm |
Dimension H | 1.50 in38.1 mm |
Dimension J (Bolt Size) | 0.875 in24 mm |
Dimension L | 4.72 in119.9 mm |
Dimension M | 2.48 in63 mm |
Dimension N | 4.060 in103.10 mm |
Dimension S | 4.13 in104.9 mm |
C0 - Static Load | 147000 lb653 kN |
C - Dynamic Load (Basic) | 125000 lb555 kN |
e - Geometry Factor | 0.26 |
Y1 - Geometry Factor | 2.55 |
Y2 - Geometry Factor | 3.80 |
Oil Lubrication - M/N Seal | 900 rpm |
Oil Lubrication - T Seal | 1700 rpm |
Oil Lubrication - B/C/O Seal | 600 rpm |
Grease Lubrication - M/N Seal | 900 rpm |
Grease Lubrication - T Seal | 1200 rpm |
Grease Lubrication - B/C/O Seal | 600 rpm |
Float | 0.083 in2.108 mm |
Shaft Tolerance | 0.0040 in0.102 mm |
Pre Install Clearance Min | 0.0053 in0.135 mm |
Pre Install Clearance Max | 0.0067 in0.170 mm |
Int Radial Clearance Reduction Min | 0.0020 in0.051 mm |
Int Radial Clearance Reduction Max | 0.0028 in0.071 mm |
Adapter Sleeve Axial Movement Min | 0.03 in0.8 mm |
