Tapered Adapter Solid-Block Housed Units

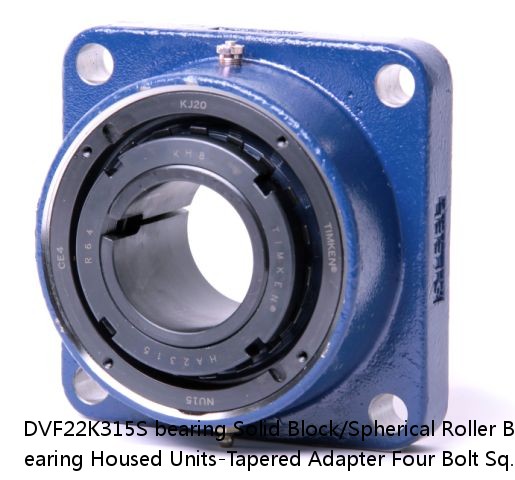

DVF22K315S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block

DVF22K315S interchange timken DVF22K315S
DVF22K315S cross reference timken DVF22K315S
DVF22K315S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	DVF22K315S
d:	3.80
D:	2.55
B:	53.0 lb24.0 Kg
r(min):	0.0040 in0.102 mm
r1(min):	3-15/16 in
Width:	Imperial
Size:	0.0053 in0.135 mm
Weight：	0.0067 in0.170 mm
Bearing Number：	1700 rpm
Housing Construction：	900 rpm
UPC Code：	600 rpm
Shaft Size Type：	Tapered Adapter

Engineering Group	Mounted Bearing
Bearing Number	22222
Shaft Size	3-15/16 in
Shaft Size Type	Imperial
Full Timken Part Number	DVF22K315SB DVF22K315SC DVF22K315SEB DVF22K315SEC DVF22K315SEM DVF22K315SEN DVF22K315SEO DVF22K315SET DVF22K315SM DVF22K315SN DVF22K315SO DVF22K315ST
Locking Style	Tapered Adapter
Weight	53.0 lb24.0 Kg
Housing Construction	Four-Bolt Square Flange
UPC Code	0883450007122 0883450007139 0883450007153 0883450007160 0883450007177 0883450007184 0883450007191 0883450007207 0883450196581 0883450196789 0883450274098 0883450274296
Dimension BC	10.96 in278.4 mm
Dimension C	5.71 in145 mm
Dimension D	8.5000 in215.900 mm
Dimension E	7.75 in196.9 mm
Dimension F	9.97 in253.2 mm
Dimension H	1.50 in38.1 mm
Dimension J (Bolt Size)	0.875 in24 mm
Dimension L	4.72 in119.9 mm
Dimension M	2.48 in63 mm
Dimension N	4.060 in103.10 mm
Dimension S	4.13 in104.9 mm
C0 - Static Load	147000 lb653 kN
C - Dynamic Load (Basic)	125000 lb555 kN
e - Geometry Factor	0.26
Y1 - Geometry Factor	2.55
Y2 - Geometry Factor	3.80
Oil Lubrication - M/N Seal	900 rpm
Oil Lubrication - T Seal	1700 rpm
Oil Lubrication - B/C/O Seal	600 rpm
Grease Lubrication - M/N Seal	900 rpm
Grease Lubrication - T Seal	1200 rpm
Grease Lubrication - B/C/O Seal	600 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0040 in0.102 mm
Pre Install Clearance Min	0.0053 in0.135 mm
Pre Install Clearance Max	0.0067 in0.170 mm
Int Radial Clearance Reduction Min	0.0020 in0.051 mm
Int Radial Clearance Reduction Max	0.0028 in0.071 mm
Adapter Sleeve Axial Movement Min	0.03 in0.8 mm
