Tapered Adapter Solid-Block Housed Units

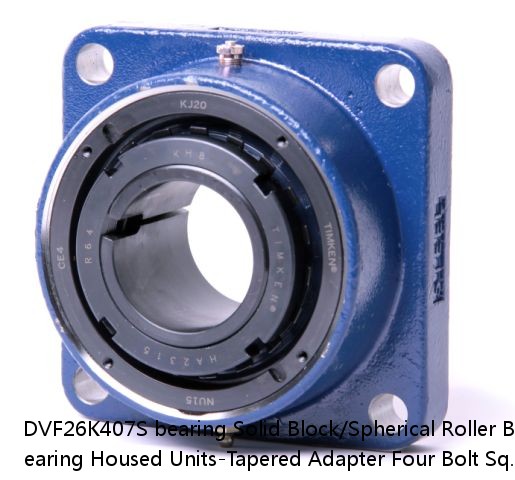

DVF26K407S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block

DVF26K407S interchange timken DVF26K407S
DVF26K407S cross reference timken DVF26K407S
DVF26K407S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	DVF26K407S
d:	3.61
D:	2.43
B:	75 lb34 Kg
r(min):	0.0040 in0.102 mm
r1(min):	4-7/16 in
Width:	Imperial
Size:	0.0063 in0.160 mm
Weight：	0.0079 in0.201 mm
Bearing Number：	1500 rpm
Housing Construction：	700 rpm
UPC Code：	400 rpm
Shaft Size Type：	Tapered Adapter

Engineering Group	Mounted Bearing
Bearing Number	22226
Shaft Size	4-7/16 in
Shaft Size Type	Imperial
Full Timken Part Number	DVF26K407SB DVF26K407SC DVF26K407SEB DVF26K407SEC DVF26K407SEM DVF26K407SEN DVF26K407SEO DVF26K407SET DVF26K407SM DVF26K407SN DVF26K407SO DVF26K407ST
Locking Style	Tapered Adapter
Weight	75 lb34 Kg
Housing Construction	Four-Bolt Square Flange
UPC Code	0883450007320 0883450007337 0883450007351 0883450007368 0883450007375 0883450007382 0883450007399 0883450007405 0883450196611 0883450196819 0883450274128 0883450274326
Dimension BC	12.38 in314.5 mm
Dimension C	6.50 in165.1 mm
Dimension D	10.380 in263.70 mm
Dimension E	8.75 in222.3 mm
Dimension F	10.88 in276.4 mm
Dimension H	1.50 in38.1 mm
Dimension J (Bolt Size)	0.875 in24 mm
Dimension L	4.91 in124.7 mm
Dimension M	2.83 in71.9 mm
Dimension N	4.210 in106.90 mm
Dimension S	4.760 in120.90 mm
C0 - Static Load	212000 lb945 kN
C - Dynamic Load (Basic)	170000 lb757 kN
e - Geometry Factor	0.28
Y1 - Geometry Factor	2.43
Y2 - Geometry Factor	3.61
Oil Lubrication - M/N Seal	700 rpm
Oil Lubrication - T Seal	1500 rpm
Oil Lubrication - B/C/O Seal	400 rpm
Grease Lubrication - M/N Seal	700 rpm
Grease Lubrication - T Seal	1000 rpm
Grease Lubrication - B/C/O Seal	400 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0040 in0.102 mm
Pre Install Clearance Min	0.0063 in0.160 mm
Pre Install Clearance Max	0.0079 in0.201 mm
Int Radial Clearance Reduction Min	0.0025 in0.064 mm
Int Radial Clearance Reduction Max	0.0035 in0.089 mm
Adapter Sleeve Axial Movement Min	0.035 in0.9 mm
