Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFB15K065S

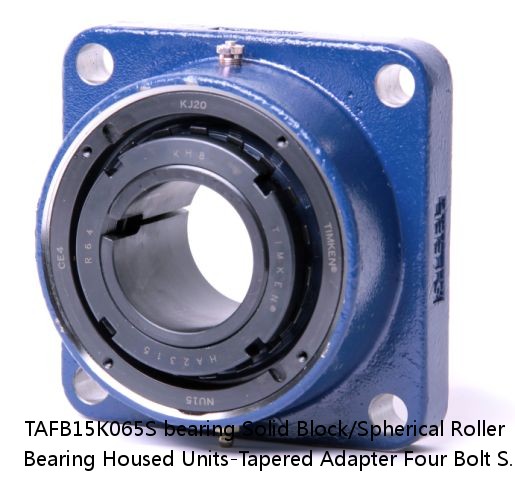

TAFB15K065S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFB15K065S PDF download| TAFB15K065S interchange timken TAFB15K065S | |
| TAFB15K065S cross reference timken TAFB15K065S | |
| TAFB15K065S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | TAFB15K065S |
| d: | 4.08 |
| D: | 2.74 |
| B: | 25 lb11.3 Kg |
| r(min): | 0.0035 in0.089 mm |
| r1(min): | 65 mm |
| Width: | Metric |
| Size: | 0.0037 in0.095 mm |
| Weight： | 0.0047 in0.120 mm |
| Bearing Number： | 2900 rpm |
| Housing Construction： | 1600 rpm |
| UPC Code： | 1300 rpm |
| Shaft Size Type： | Tapered Adapter |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | TAFB15K065SB TAFB15K065SC TAFB15K065SEB TAFB15K065SEC TAFB15K065SEM TAFB15K065SEN TAFB15K065SEO TAFB15K065SET TAFB15K065SM TAFB15K065SN TAFB15K065SO TAFB15K065ST |
| Locking Style | Tapered Adapter |
| Weight | 25 lb11.3 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450118972 0883450118989 0883450119009 0883450119016 0883450119023 0883450119030 0883450119047 0883450119054 0883450199322 0883450199520 0883450276962 0883450277167 |
| Dimension BC | 8.47 in215.1 mm |
| Dimension A | 10.04 in255 mm |
| Dimension C | 3.86 in98 mm |
| Dimension D | 6.690 in169.90 mm |
| Dimension E | 6.000 in152.4 mm |
| Dimension F | 7.56 in192.00 mm |
| Dimension H | 0.94 in23.9 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension G | 1 in25.4 mm |
| Dimension L | 2.90 in73.7 mm |
| Dimension M | 1.73 in43.9 mm |
| Dimension N | 2.550 in64.80 mm |
| Dimension S | 2.87 in72.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.74 |
| Y2 - Geometry Factor | 4.08 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0035 in0.089 mm |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| Int Radial Clearance Reduction Min | 0.0015 in0.038 mm |
| Int Radial Clearance Reduction Max | 0.0020 in0.051 mm |
| Adapter Sleeve Axial Movement Min | 0.022 in0.6 mm |
| Adapter Sleeve Axial Movement Max | 0.03 in0.8 mm |
| Post Install Int Radial Clearance Min | 0.0017 in0.043 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| F3-42 | F3-42 | 3.3 | 8 | 3 | 0.1 | 0.8 |
| SBB 80-2RS | 127.00 | 1.1 | 0.8 | 183.0 | 144.9 | 127.00 |
| QMFY15J070S | 4.67 | 3.14 | 28 lb12.7 Kg | 0883450073523 0883450073530 0883450073554 0883450073561 0883450073578 0883450073585 0883450073592 08 | 0.0020 in0.051 mm | 70 mm |
| HR32024XJ | 0.72 | Standard | 120 | 2.0 | 2.0 | 2.5 |
| NU3068EMA | NU | N | 580 | 530 | METRIC | 520.000 mm20.4724 in |
| 7217BDF | 85 | 1.00 | 2.0 | 3.740 | 3800 | 2600 |
| KR5520A-0800-R1-10WV-14M | KR55 | - | - | - | - | - |
| 62052RS | 25 | 1.0 | 8400 | 62052RS | 52 | 0.550 |
| SDA2520VZ-3G0+86LC0 | SDA2520VZ-3 | 86.000 | None | Overall thread lenght is ... | There is the groove on bo... | - |
| 22210EJW33 | 2.78 | 4.23 | 2.84 | 22210CJW33 | 6200 | 5000 |
