Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFB15K208S

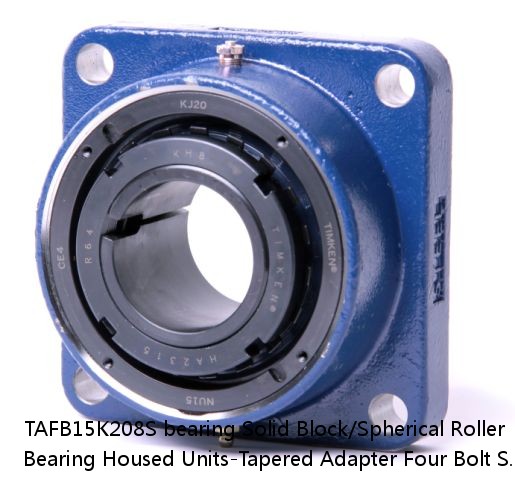

TAFB15K208S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFB15K208S interchange timken TAFB15K208S | |
TAFB15K208S cross reference timken TAFB15K208S | |
TAFB15K208S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | TAFB15K208S |
d: | 4.08 |
D: | 2.74 |
B: | 25 lb11.3 Kg |
r(min): | 0.0035 in0.089 mm |
r1(min): | 2-1/2 in |
Width: | Imperial |
Size: | 0.0037 in0.095 mm |
Weight: | 0.0047 in0.120 mm |
Bearing Number: | 2900 rpm |
Housing Construction: | 1600 rpm |
UPC Code: | 1300 rpm |
Shaft Size Type: | Tapered Adapter |
Engineering Group | Mounted Bearing |
Bearing Number | 22215 |
Shaft Size | 2-1/2 in |
Shaft Size Type | Imperial |
Full Timken Part Number | TAFB15K208SB TAFB15K208SC TAFB15K208SEB TAFB15K208SEC TAFB15K208SEM TAFB15K208SEN TAFB15K208SEO TAFB15K208SET TAFB15K208SM TAFB15K208SN TAFB15K208SO TAFB15K208ST TAFB15K208STHT |
Locking Style | Tapered Adapter |
Weight | 25 lb11.3 Kg |
Housing Construction | Four-Bolt Square Flange |
UPC Code | 0883450119177 0883450119184 0883450119207 0883450119214 0883450119221 0883450119238 0883450119245 0883450119252 0883450199315 0883450199513 0883450276955 0883450277150 0883450953870 |
Dimension BC | 8.47 in215.1 mm |
Dimension A | 10.04 in255 mm |
Dimension C | 3.86 in98 mm |
Dimension D | 6.690 in169.90 mm |
Dimension E | 6.000 in152.4 mm |
Dimension F | 7.56 in192.00 mm |
Dimension H | 0.94 in23.9 mm |
Dimension J (Bolt Size) | 0.625 in16 mm |
Dimension G | 1 in25.4 mm |
Dimension L | 2.90 in73.7 mm |
Dimension M | 1.73 in43.9 mm |
Dimension N | 2.550 in64.80 mm |
Dimension S | 2.87 in72.9 mm |
C0 - Static Load | 54100 lb240 kN |
C - Dynamic Load (Basic) | 49900 lb222 kN |
e - Geometry Factor | 0.25 |
Y1 - Geometry Factor | 2.74 |
Y2 - Geometry Factor | 4.08 |
Oil Lubrication - M/N Seal | 1600 rpm |
Oil Lubrication - T Seal | 2900 rpm |
Oil Lubrication - B/C/O Seal | 1300 rpm |
Grease Lubrication - M/N Seal | 1600 rpm |
Grease Lubrication - T Seal | 2400 rpm |
Grease Lubrication - B/C/O Seal | 1300 rpm |
Float | 0.083 in2.108 mm |
Shaft Tolerance | 0.0035 in0.089 mm |
Pre Install Clearance Min | 0.0037 in0.095 mm |
Pre Install Clearance Max | 0.0047 in0.120 mm |
Int Radial Clearance Reduction Min | 0.0015 in0.038 mm |
Int Radial Clearance Reduction Max | 0.0020 in0.051 mm |
Adapter Sleeve Axial Movement Min | 0.022 in0.6 mm |
Adapter Sleeve Axial Movement Max | 0.03 in0.8 mm |
Post Install Int Radial Clearance Min | 0.0017 in0.043 mm |
