Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFB20K090S

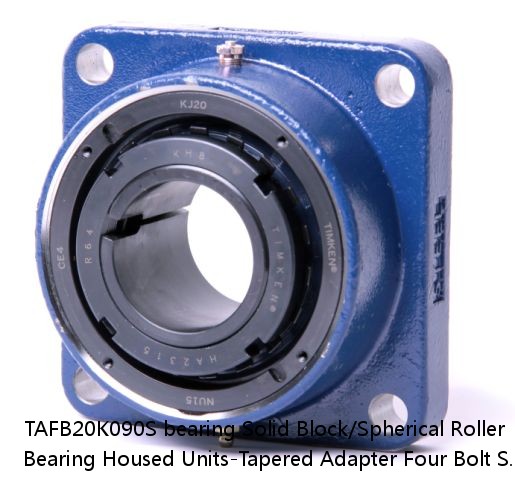

TAFB20K090S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFB20K090S PDF download| TAFB20K090S interchange timken TAFB20K090S | |
| TAFB20K090S cross reference timken TAFB20K090S | |
| TAFB20K090S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | TAFB20K090S |
| d: | 3.80 |
| D: | 2.55 |
| B: | 40.0 lb18.1 Kg |
| r(min): | 0.0040 in0.102 mm |
| r1(min): | 90 mm |
| Width: | Metric |
| Size: | 0.0043 in0.110 mm |
| Weight： | 0.0055 in0.140 mm |
| Bearing Number： | 2000 rpm |
| Housing Construction： | 1200 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | Tapered Adapter |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 90 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | TAFB20K090SB TAFB20K090SC TAFB20K090SEB TAFB20K090SEC TAFB20K090SEM TAFB20K090SEN TAFB20K090SEO TAFB20K090SET TAFB20K090SM TAFB20K090SN TAFB20K090SO TAFB20K090ST |
| Locking Style | Tapered Adapter |
| Weight | 40.0 lb18.1 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450119573 0883450119580 0883450119603 0883450119610 0883450119627 0883450119634 0883450119641 0883450119658 0883450199384 0883450199582 0883450277020 0883450277228 |
| Dimension BC | 11.02 in279.9 mm |
| Dimension A | 13 in330.2 mm |
| Dimension C | 5.12 in130 mm |
| Dimension D | 9.060 in230.10 mm |
| Dimension E | 7.79 in197.9 mm |
| Dimension F | 9.76 in247.9 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension G | 1.25 in31.75 mm |
| Dimension L | 4.16 in105.7 mm |
| Dimension M | 2.3 in58.4 mm |
| Dimension N | 3.710 in94.20 mm |
| Dimension S | 3.82 in97 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.55 |
| Y2 - Geometry Factor | 3.80 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| Int Radial Clearance Reduction Min | 0.0018 in0.046 mm |
| Int Radial Clearance Reduction Max | 0.0025 in0.064 mm |
| Adapter Sleeve Axial Movement Min | 0.027 in0.7 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 23068EJW25W507C08C3 | 2.89 | 4.4 | 2.96 | 23068CJW25W507C08C3 | 930 | 800 |
| E/4BF/TRB/2 3/4/ECO | 2.26 | 1.87 | 0.7 | 0.87 | 28 lb | 0883450506847 |
| E32313J | 51.00 | 65 | 2GD | 2.5 | 3.0 | 3.640 |
| LY650203ANN1K##---+(26.5) | LY65AN | 26.5 | - | - | - | - |
| 7307CDF FY | 35 | 1.5 | 7307CDF FY | 15000 | 11000 | 80 |
| SHT 140 | 349 | 24400 | 60 | M 12x25 | 181.0 | 155 |
| 24038CAMK30E4 | 24038CAMK30E4 | 24.00 | 290 | 2.2 | 3.2 | 2.1 |
| 85BER10H | 85 | 0.6 | 1.1 | 85BER10H | 906.000 | 36.100 |
| 7020A | Standard | 100 | 1.5 | 1.5 | 7020A | 6000 |
| 230/530KYMBW906AC4 | 3.07 | 4.68 | 3.14 | 530 | 460 | 5.000 mm0.200 in |
