Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFB26K115S

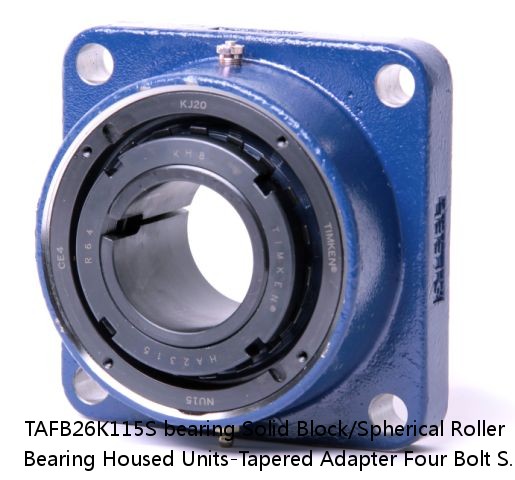

TAFB26K115S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFB26K115S interchange timken TAFB26K115S | |
TAFB26K115S cross reference timken TAFB26K115S | |
TAFB26K115S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | TAFB26K115S |
d: | 3.61 |
D: | 2.43 |
B: | 94 lb42.6 Kg |
r(min): | 0.0040 in0.102 mm |
r1(min): | 115 mm |
Width: | Metric |
Size: | 0.0063 in0.160 mm |
Weight: | 0.0079 in0.201 mm |
Bearing Number: | 1500 rpm |
Housing Construction: | 700 rpm |
UPC Code: | 400 rpm |
Shaft Size Type: | Tapered Adapter |
Engineering Group | Mounted Bearing |
Bearing Number | 22226 |
Shaft Size | 115 mm |
Shaft Size Type | Metric |
Full Timken Part Number | TAFB26K115SB TAFB26K115SC TAFB26K115SEB TAFB26K115SEC TAFB26K115SEM TAFB26K115SEN TAFB26K115SEO TAFB26K115SET TAFB26K115SM TAFB26K115SN TAFB26K115SO TAFB26K115ST |
Locking Style | Tapered Adapter |
Weight | 94 lb42.6 Kg |
Housing Construction | Four-Bolt Square Flange |
UPC Code | 0883450309165 0883450309172 0883450309189 0883450309196 0883450309202 0883450309219 0883450309226 0883450309233 0883450309240 0883450309257 0883450309264 0883450309271 |
Dimension BC | 13.97 in354.8 mm |
Dimension A | 16.2 in411.5 mm |
Dimension C | 6.50 in165.1 mm |
Dimension D | 11.420 in290.10 mm |
Dimension E | 9.88 in251.0 mm |
Dimension F | 11.75 in298.5 mm |
Dimension H | 1.26 in32.0 mm |
Dimension J (Bolt Size) | 0.875 in24 mm |
Dimension G | 1.65 in41.91 mm |
Dimension L | 5.14 in130.6 mm |
Dimension M | 2.83 in71.9 mm |
Dimension N | 4.500 in114.3 mm |
Dimension S | 4.760 in120.90 mm |
C0 - Static Load | 212000 lb945 kN |
C - Dynamic Load (Basic) | 170000 lb757 kN |
e - Geometry Factor | 0.28 |
Y1 - Geometry Factor | 2.43 |
Y2 - Geometry Factor | 3.61 |
Oil Lubrication - M/N Seal | 700 rpm |
Oil Lubrication - T Seal | 1500 rpm |
Oil Lubrication - B/C/O Seal | 400 rpm |
Grease Lubrication - M/N Seal | 700 rpm |
Grease Lubrication - T Seal | 1000 rpm |
Grease Lubrication - B/C/O Seal | 400 rpm |
Float | 0.083 in2.108 mm |
Shaft Tolerance | 0.0040 in0.102 mm |
Pre Install Clearance Min | 0.0063 in0.160 mm |
Pre Install Clearance Max | 0.0079 in0.201 mm |
Int Radial Clearance Reduction Min | 0.0025 in0.064 mm |
Int Radial Clearance Reduction Max | 0.0035 in0.089 mm |
Adapter Sleeve Axial Movement Min | 0.035 in0.9 mm |
