Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFC15K065S

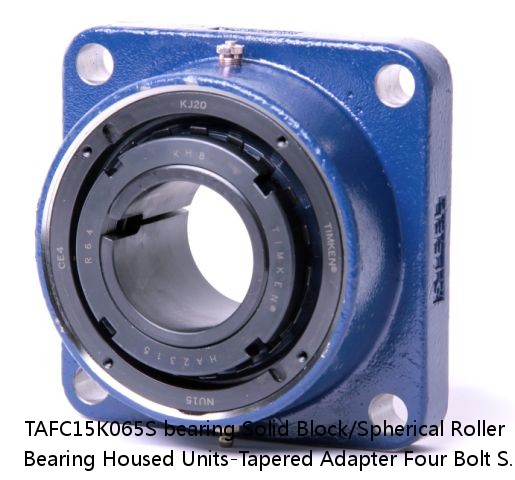

TAFC15K065S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFC15K065S PDF download| Price： | enquiry |
| Model Number： | TAFC15K065S |
| Weight： | 4.08 |
| Bearing Number： | 2.74 |
| Housing Construction： | 25 lb11.3 Kg |
| UPC Code： | 0.0035 in0.089 mm |
| Shaft Size Type： | 65 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | TAFC15K065SB TAFC15K065SC TAFC15K065SEB TAFC15K065SEC TAFC15K065SEM TAFC15K065SEN TAFC15K065SEO TAFC15K065SET TAFC15K065SM TAFC15K065SN TAFC15K065SO TAFC15K065ST |
| Locking Style | Tapered Adapter |
| Weight | 25 lb11.3 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450120975 0883450120982 0883450121002 0883450121019 0883450121026 0883450121033 0883450121040 0883450121057 0883450199728 0883450199926 0883450277365 0883450277563 |
| Dimension BC | 8.47 in215.1 mm |
| Dimension A | 10.04 in255 mm |
| Dimension C | 3.86 in98 mm |
| Dimension D | 6.690 in169.90 mm |
| Dimension E | 6.000 in152.4 mm |
| Dimension F | 7.56 in192.00 mm |
| Dimension H | 0.94 in23.9 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension G | 1 in25.4 mm |
| Dimension L | 3.09 in78.5 mm |
| Dimension M | 1.73 in43.9 mm |
| Dimension N | 2.550 in64.80 mm |
| Dimension S | 2.87 in72.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.74 |
| Y2 - Geometry Factor | 4.08 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0035 in0.089 mm |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| Int Radial Clearance Reduction Min | 0.0015 in0.038 mm |
| Int Radial Clearance Reduction Max | 0.0020 in0.051 mm |
| Adapter Sleeve Axial Movement Min | 0.022 in0.6 mm |
| Adapter Sleeve Axial Movement Max | 0.03 in0.8 mm |
| Post Install Int Radial Clearance Min | 0.0017 in0.043 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 526/522 | 34.925 | 41.275 | 3.2 | 3.6 | 5300 | 4000 |
| ACH580-VDR-022A-6-Architecture300 | 27.0 | 214 | 20 | R3 | VX1-3 | 277 |
| X31309M/Y31309M | 27.250 mm1.0728 in | 31309M | 1.52 mm0.06 in | 2.030 mm0.080 in | 30.4 | METRIC |
| NJ348 | 240 | 5.0 | 5.0 | NJ348 | 93.400 | 1 500 |
| NKJ35/20A | 35 | 0.3 | NKJ35/20A | 11000 | 40 | 50 |
| BT4B 334002 G/HA1VA901 | 318.480 | 1220 | 17300 | 6270 | BT4B 334002 G/HA1VA901 | 660.000 |
| NU2310ET7 | Standard | 50 | 2.0 | 2.0 | 2.0 | 2.0 |
| JW7549/JW7510 | 42.000 mm1.6535 in | JW7500 | 3.05 mm0.12 in | 3.050 mm0.12 in | 100.3 | METRIC |
| KT 182412 | 18 | KT 182412 | 11.0 | 18 | 24 | 11800 |
| 24176RHA | 5.0 | 24176RHA | 560 | 420 | 620 | 561 |
