Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFC20K090S

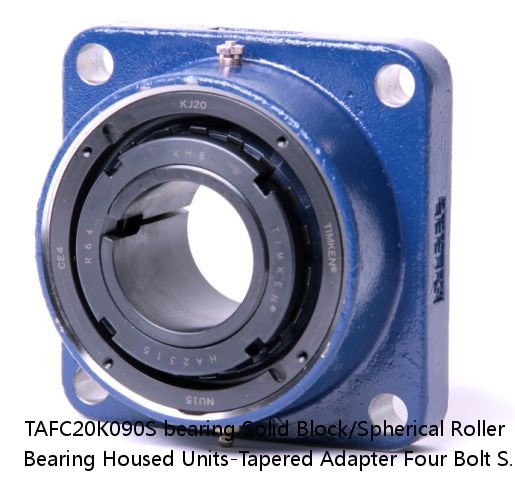

TAFC20K090S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFC20K090S interchange timken TAFC20K090S | |
TAFC20K090S cross reference timken TAFC20K090S | |
TAFC20K090S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | TAFC20K090S |
d: | 3.80 |
D: | 2.55 |
B: | 40.0 lb18.1 Kg |
r(min): | 0.0040 in0.102 mm |
r1(min): | 90 mm |
Width: | Metric |
Size: | 0.0043 in0.110 mm |
Weight: | 0.0055 in0.140 mm |
Bearing Number: | 2000 rpm |
Housing Construction: | 1200 rpm |
UPC Code: | 900 rpm |
Shaft Size Type: | Tapered Adapter |
Engineering Group | Mounted Bearing |
Bearing Number | 22220 |
Shaft Size | 90 mm |
Shaft Size Type | Metric |
Full Timken Part Number | TAFC20K090SB TAFC20K090SC TAFC20K090SEB TAFC20K090SEC TAFC20K090SEM TAFC20K090SEN TAFC20K090SEO TAFC20K090SET TAFC20K090SM TAFC20K090SN TAFC20K090SO TAFC20K090ST |
Locking Style | Tapered Adapter |
Weight | 40.0 lb18.1 Kg |
Housing Construction | Four-Bolt Square Flange |
UPC Code | 0883450121576 0883450121583 0883450121606 0883450121613 0883450121620 0883450121637 0883450121644 0883450121651 0883450199780 0883450199988 0883450277426 0883450277624 |
Dimension BC | 11.02 in279.9 mm |
Dimension A | 13 in330.2 mm |
Dimension C | 5.12 in130 mm |
Dimension D | 9.060 in230.10 mm |
Dimension E | 7.79 in197.9 mm |
Dimension F | 9.76 in247.9 mm |
Dimension H | 1.13 in28.7 mm |
Dimension J (Bolt Size) | 0.75 in20 mm |
Dimension G | 1.25 in31.75 mm |
Dimension L | 4.16 in105.7 mm |
Dimension M | 2.3 in58.4 mm |
Dimension N | 3.710 in94.20 mm |
Dimension S | 3.82 in97 mm |
C0 - Static Load | 113000 lb502 kN |
C - Dynamic Load (Basic) | 97700 lb435 kN |
e - Geometry Factor | 0.26 |
Y1 - Geometry Factor | 2.55 |
Y2 - Geometry Factor | 3.80 |
Oil Lubrication - M/N Seal | 1200 rpm |
Oil Lubrication - T Seal | 2000 rpm |
Oil Lubrication - B/C/O Seal | 900 rpm |
Grease Lubrication - M/N Seal | 1200 rpm |
Grease Lubrication - T Seal | 1600 rpm |
Grease Lubrication - B/C/O Seal | 900 rpm |
Float | 0.083 in2.108 mm |
Shaft Tolerance | 0.0040 in0.102 mm |
Pre Install Clearance Min | 0.0043 in0.110 mm |
Pre Install Clearance Max | 0.0055 in0.140 mm |
Int Radial Clearance Reduction Min | 0.0018 in0.046 mm |
Int Radial Clearance Reduction Max | 0.0025 in0.064 mm |
Adapter Sleeve Axial Movement Min | 0.027 in0.7 mm |
