Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFC26K408S

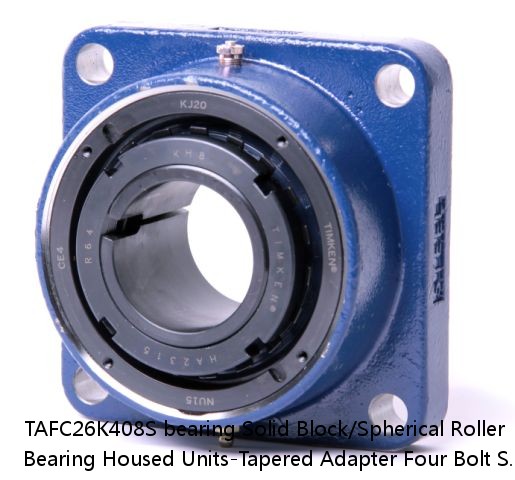

TAFC26K408S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFC26K408S PDF download| TAFC26K408S interchange timken TAFC26K408S | |
| TAFC26K408S cross reference timken TAFC26K408S | |
| TAFC26K408S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | TAFC26K408S |
| d: | 3.61 |
| D: | 2.43 |
| B: | 94 lb42.6 Kg |
| r(min): | 0.0040 in0.102 mm |
| r1(min): | 4-1/2 in |
| Width: | Imperial |
| Size: | 0.0063 in0.160 mm |
| Weight： | 0.0079 in0.201 mm |
| Bearing Number： | 1500 rpm |
| Housing Construction： | 700 rpm |
| UPC Code： | 400 rpm |
| Shaft Size Type： | Tapered Adapter |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22226 |
| Shaft Size | 4-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | TAFC26K408SB TAFC26K408SC TAFC26K408SEB TAFC26K408SEC TAFC26K408SEM TAFC26K408SEN TAFC26K408SEO TAFC26K408SET TAFC26K408SM TAFC26K408SN TAFC26K408SO TAFC26K408ST |
| Locking Style | Tapered Adapter |
| Weight | 94 lb42.6 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450122276 0883450122283 0883450122306 0883450122313 0883450122320 0883450122337 0883450122344 0883450122351 0883450199834 0883450200035 0883450277471 0883450277679 |
| Dimension BC | 13.98 in355.1 mm |
| Dimension A | 16.2 in411.5 mm |
| Dimension C | 6.50 in165.1 mm |
| Dimension D | 11.417 in290.000 mm |
| Dimension E | 9.88 in251.0 mm |
| Dimension F | 11.75 in298.5 mm |
| Dimension H | 1.26 in32.0 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension G | 1.65 in41.91 mm |
| Dimension L | 5.14 in130.6 mm |
| Dimension M | 2.83 in71.9 mm |
| Dimension N | 4.500 in114.3 mm |
| Dimension S | 4.760 in120.90 mm |
| C0 - Static Load | 212000 lb945 kN |
| C - Dynamic Load (Basic) | 170000 lb757 kN |
| e - Geometry Factor | 0.28 |
| Y1 - Geometry Factor | 2.43 |
| Y2 - Geometry Factor | 3.61 |
| Oil Lubrication - M/N Seal | 700 rpm |
| Oil Lubrication - T Seal | 1500 rpm |
| Oil Lubrication - B/C/O Seal | 400 rpm |
| Grease Lubrication - M/N Seal | 700 rpm |
| Grease Lubrication - T Seal | 1000 rpm |
| Grease Lubrication - B/C/O Seal | 400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0063 in0.160 mm |
| Pre Install Clearance Max | 0.0079 in0.201 mm |
| Int Radial Clearance Reduction Min | 0.0025 in0.064 mm |
| Int Radial Clearance Reduction Max | 0.0035 in0.089 mm |
| Adapter Sleeve Axial Movement Min | 0.035 in0.9 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7334ADB | Standard | 170 | 3.0 | 4.0 | 7334ADB | 1700 |
| TLAM 3520 | 35 | TLAM 3520 | 51.00 | 35 | 42 | 20700 |
| SNL 3080 G + 23080 | 1000 | SNL 3080 G + 23080 | 695 | SNL 3080 G + 23080 | 400.000 | 600.000 |
| 1213K;H213X | 65 | 1213K;H213X | 0.400 | - | - | - |
| SNP-3052X9-7/16 | HMVC 52E | N 052 | SNP-3052X9-7/16 | 309.702 | 239.713 | 260.000 |
| SRN35LR1SS+280L | No connection | SRN35LR | 20.000 | - | - | - |
| ACS800-07-1500-7 | 1250 | 1000 | 1208 | 941 | 1882 | 2D4+3R8i |
| 23160EJW33W45AC3 | 2.2 | 3.35 | 2.25 | 23160CJW33W45AC3 | 760 | 680 |
| SNW-3036X6-3/8 | HMVC 36E | N 036 | SNW-3036X6-3/8 | 209.677 | 161.925 | 180.000 |
| 7940CDB FY | 200 | 2.1 | 7940CDB FY | 3300 | 2500 | 280 |
