Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFK13K060S

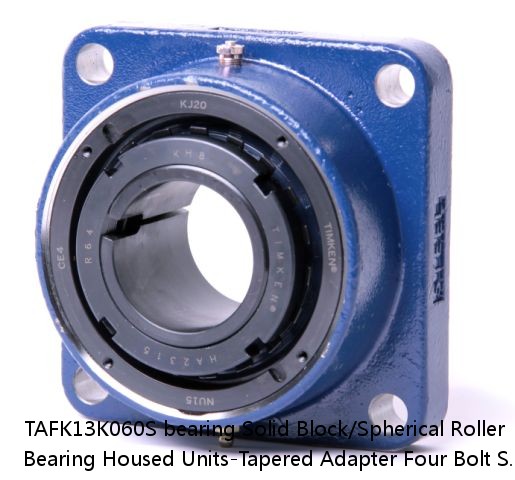

TAFK13K060S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFK13K060S interchange timken TAFK13K060S | |
TAFK13K060S cross reference timken TAFK13K060S | |
TAFK13K060S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | TAFK13K060S |
d: | 3.71 |
D: | 2.49 |
B: | 14 lb6.4 Kg |
r(min): | 0.0030 in0.076 mm |
r1(min): | 60 mm |
Width: | Metric |
Size: | 0.0030 in0.075 mm |
Weight: | 0.0037 in0.094 mm |
Bearing Number: | 3200 rpm |
Housing Construction: | 1800 rpm |
UPC Code: | 1500 rpm |
Shaft Size Type: | Tapered Adapter |
Engineering Group | Mounted Bearing |
Bearing Number | 22213 |
Shaft Size | 60 mm |
Shaft Size Type | Metric |
Full Timken Part Number | TAFK13K060S TAFK13K060SB TAFK13K060SC TAFK13K060SEB TAFK13K060SEC TAFK13K060SEM TAFK13K060SEN TAFK13K060SEO TAFK13K060SET TAFK13K060SM TAFK13K060SN TAFK13K060SO TAFK13K060ST |
Locking Style | Tapered Adapter |
Weight | 14 lb6.4 Kg |
Housing Construction | Four-Bolt Square Flange |
Dimension BC | 7.12 in180.8 mm |
Dimension C | 3.35 in85.1 mm |
Dimension D | 5.750 in146.10 mm |
Dimension E | 5.03 in127.8 mm |
Dimension F | 6.19 in157.2 mm |
Dimension H | 1.00 in25.4 mm |
Dimension J (Bolt Size) | 0.625 in16 mm |
Dimension L | 3.06 in77.7 mm |
Dimension L Exp | 3.14 in79.8 mm |
Dimension L Fix | 3.06 in77.7 mm |
Dimension M | 1.56 in39.6 mm |
Dimension N | 2.850 in72.40 mm |
Dimension R | 0.5 in12.7 mm |
Dimension S | 2.56 in65 mm |
C0 - Static Load | 48600 lb216 kN |
C - Dynamic Load (Basic) | 46400 lb206 kN |
e - Geometry Factor | 0.27 |
Y1 - Geometry Factor | 2.49 |
Y2 - Geometry Factor | 3.71 |
Oil Lubrication - M/N Seal | 1800 rpm |
Oil Lubrication - T Seal | 3200 rpm |
Oil Lubrication - B/C/O Seal | 1500 rpm |
Grease Lubrication - M/N Seal | 1800 rpm |
Grease Lubrication - T Seal | 2800 rpm |
Grease Lubrication - B/C/O Seal | 1500 rpm |
Float | 0.050 in1.270 mm |
Shaft Tolerance | 0.0030 in0.076 mm |
Pre Install Clearance Min | 0.0030 in0.075 mm |
Pre Install Clearance Max | 0.0037 in0.094 mm |
Int Radial Clearance Reduction Min | 0.0012 in0.030 mm |
Int Radial Clearance Reduction Max | 0.0015 in0.038 mm |
Adapter Sleeve Axial Movement Min | 0.018 in0.5 mm |
Adapter Sleeve Axial Movement Max | 0.022 in0.6 mm |
Post Install Int Radial Clearance Min | 0.0015 in0.038 mm |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
90807 | 90807 | 744.525 | 749.300 | 63.500 | - | - |
23024EJW33C2 | 2.95 | 4.49 | 3.02 | 23024CJW33C2 | 3300 | 2700 |
SYJ 2. TF | 3600 | 29 | 43.6 | SYJ 511 | SYJ 2. TF | YAR 211-200-2F |
E/P2B/TRB/40MM | 2.37 | 1.96 | 0.7 | 0.87 | 10 lb | 053893775432 |
LM 6090110 F | None | Stainless | LM 6090110 F | Stainless | 60 | - |
46264A | 151 | 320 | 1.5 | 5.0 | 46264A | 480 |
X32222M/Y32222M | 56 mm2.2047 in | 32222M | 2.54 mm0.1 in | 3.050 mm0.12 in | 277.3 | METRIC |
K 89330 M | 1300 | 630 | 3250.000 | 670.000 | 0.000 | 19.000 |
X32021X/Y32021X | 35.000 mm1.3780 in | 32021X | 2.03 mm0.08 in | 2.540 mm0.1 in | 176.5 | METRIC |
6203T1XZZ | 17 | 0.6 | 6203T1XZZ | 24600 | 40 | 9.55 |
