Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFK17K300S

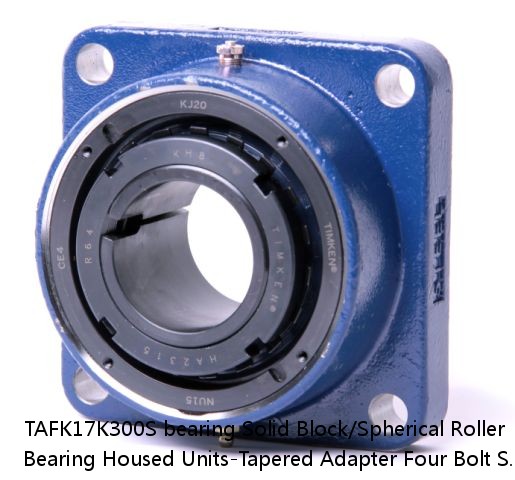

TAFK17K300S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFK17K300S PDF download| TAFK17K300S interchange timken TAFK17K300S | |
| TAFK17K300S cross reference timken TAFK17K300S | |
| TAFK17K300S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | TAFK17K300S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 23 lb10.40 Kg |
| r(min): | 0.0040 in0.102 mm |
| r1(min): | 3 in |
| Width: | Imperial |
| Size: | 0.0043 in0.110 mm |
| Weight： | 0.0055 in0.140 mm |
| Bearing Number： | 2400 rpm |
| Housing Construction： | 1400 rpm |
| UPC Code： | 1100 rpm |
| Shaft Size Type： | Tapered Adapter |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22217 |
| Shaft Size | 3 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | TAFK17K300SB TAFK17K300SC TAFK17K300SEB TAFK17K300SEC TAFK17K300SEM TAFK17K300SEN TAFK17K300SEO TAFK17K300SET TAFK17K300SM TAFK17K300SN TAFK17K300SO TAFK17K300ST |
| Locking Style | Tapered Adapter |
| Weight | 23 lb10.40 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450380409 0883450380416 0883450380423 0883450380430 0883450380447 0883450380454 0883450380461 0883450380478 0883450380485 0883450380492 0883450380508 0883450380515 |
| Dimension BC | 9.5 in241.3 mm |
| Dimension C | 4.33 in110 mm |
| Dimension D | 7.630 in193.80 mm |
| Dimension E | 6.72 in170.7 mm |
| Dimension F | 8.38 in212.9 mm |
| Dimension H | 1.31 in33.3 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L | 3.79 in96.3 mm |
| Dimension L Exp | 3.87 in98.3 mm |
| Dimension L Fix | 3.79 in96.3 mm |
| Dimension M | 1.96 in49.8 mm |
| Dimension N | 3.310 in84.1 mm |
| Dimension R | 0.56 in14.2 mm |
| Dimension S | 3.23 in82 mm |
| C0 - Static Load | 71900 lb320 kN |
| C - Dynamic Load (Basic) | 66900 lb297 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1100 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1100 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| Int Radial Clearance Reduction Min | 0.0018 in0.046 mm |
| Int Radial Clearance Reduction Max | 0.0025 in0.064 mm |
| Adapter Sleeve Axial Movement Min | 0.027 in0.7 mm |
