Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU14V208S

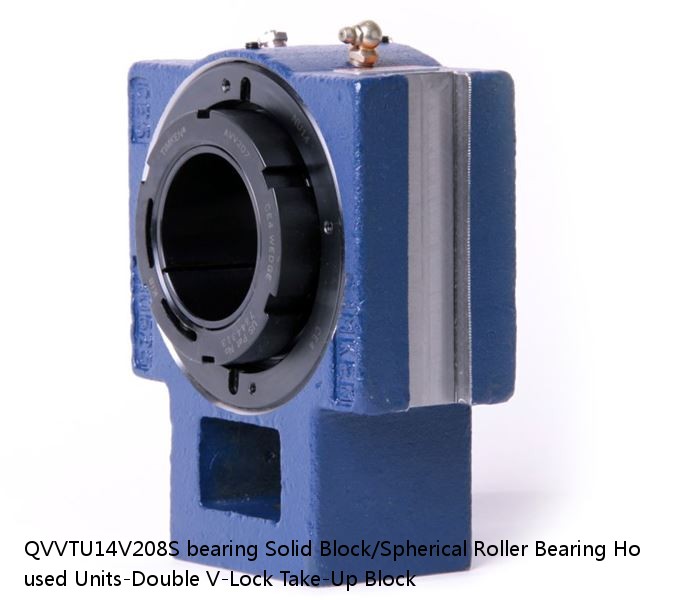

QVVTU14V208S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU14V208S PDF download| QVVTU14V208S interchange timken QVVTU14V208S | |
| QVVTU14V208S cross reference timken QVVTU14V208S | |
| QVVTU14V208S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVTU14V208S |
| d: | 4.32 |
| D: | 2.90 |
| B: | 17.0 lb7.7 Kg |
| r(min): | 0883450376327 0883450376334 0883450376341 0883450376358 0883450376365 0883450376372 0883450376389 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 2-1/2 in |
| Size: | Imperial |
| Weight： | 0.075 mm0.0030 in |
| Bearing Number： | 0.094 mm0.0037 in |
| Housing Construction： | 3050 rpm |
| UPC Code： | 1700 rpm |
| Shaft Size Type： | 1400 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22214 |
| Shaft Size | 2-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVTU14V208SB QVVTU14V208SC QVVTU14V208SEB QVVTU14V208SEC QVVTU14V208SEM QVVTU14V208SEN QVVTU14V208SEO QVVTU14V208SET QVVTU14V208SM QVVTU14V208SN QVVTU14V208SO QVVTU14V208ST |
| Locking Style | Double V-Lock |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450376327 0883450376334 0883450376341 0883450376358 0883450376365 0883450376372 0883450376389 0883450376396 0883450376402 0883450376419 0883450376426 0883450376433 |
| Dimension A | 2.75 in69.9 mm |
| Dimension C | 0.88 in22.4 mm |
| Dimension D | 5.88 in149.4 mm |
| Dimension E | 5.13 in130.3 mm |
| Dimension F | 1.31 in33.3 mm |
| Dimension G | 1.31 in33.3 mm |
| Dimension J | 3.75 in95.3 mm |
| Dimension L | 7.63 in193.8 mm |
| Dimension N | 3.48 in88.4 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension RVV | 0.61 in15.5 mm |
| Dimension S | 1.060 in26.90 mm |
| Dimension T | 3.99 in101.3 mm |
| Dimension TVV | 4.09 in103.9 mm |
| C - Dynamic Load (Basic) | 47800 lb213 kN |
| C0 - Static Load | 52000 lb231 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.32 |
| Oil Lubrication - M/N Seal | 1700 rpm |
| Oil Lubrication - T Seal | 3050 rpm |
| Oil Lubrication - B/C/O Seal | 1400 rpm |
| Grease Lubrication - M/N Seal | 1700 rpm |
| Grease Lubrication - T Seal | 2600 rpm |
| Grease Lubrication - B/C/O Seal | 1400 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.094 mm0.0037 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| SILJ 20 ES | 51.00 | 30.00 | 55.000 | 20.000 | 13.000 | 16.000 |
| 6203/ZZ/C3 | 0.070 Kg | 0.600 mm | 12.000 mm | 40.000 mm | 25000 rpm | 17000 rpm |
| W 24 | W 24 | 121.9454 | - | - | 164.3126 | - |
| PF 45 TF | 4300 | 21.6 | 33.2 | PF 85 | PF 45 TF | YAR 209-2F |
| 23132EAD1 | 23132EAD1 | 20.100 | 14.0 | 160 | 2.1 | 1900 |
| 232/950CAMKE4 | 232/950CAMKE4 | 4800.00 | 1660 | 2.1 | 3.1 | 2.1 |
| 7336B FY | 180 | 1.500 | 4.000 | 1900 | 1400 | 7336BFY |
| QAATU18A080S | 4.31 | 2.90 | 44 lb20.00 Kg | 0883450323222 0883450323239 0883450323246 0883450323253 0883450323260 0883450323277 0883450323284 08 | 0.0030 in0.076 mm | 80 mm |
| 3MMV9112HX | 1 mm0.039 in | 1 mm0.039 in | 31400 rpm | 15700 rpm | 7.937500 mm5/16 in | METRIC |
| HR31308J | 0.40 | _ | 40 | 2.0 | 1.5 | 2.0 |
