Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU16V212S

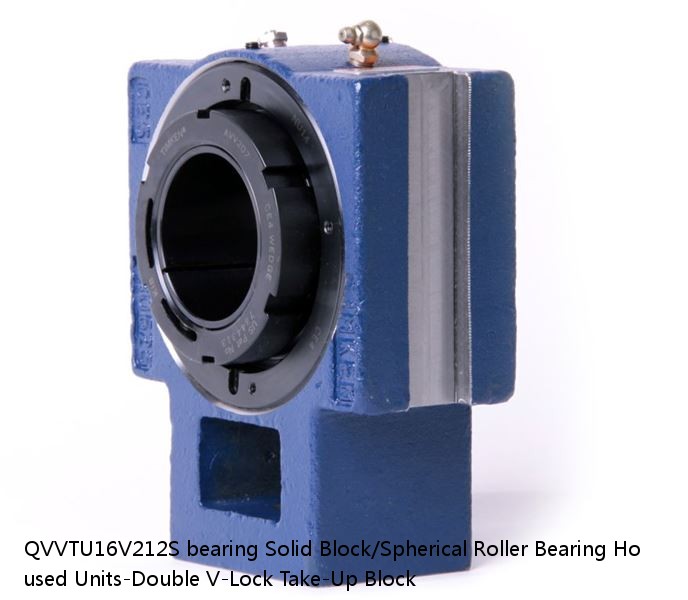

QVVTU16V212S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU16V212S PDF download| QVVTU16V212S interchange timken QVVTU16V212S | |
| QVVTU16V212S cross reference timken QVVTU16V212S | |
| QVVTU16V212S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVTU16V212S |
| d: | 4.67 |
| D: | 3.14 |
| B: | 35 lb15.90 Kg |
| r(min): | 0883450376808 0883450376815 0883450376822 0883450376839 0883450376846 0883450376853 0883450376860 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 2-3/4 in |
| Size: | Imperial |
| Weight： | 0.095 mm0.0037 in |
| Bearing Number： | 0.120 mm0.0047 in |
| Housing Construction： | 2650 rpm |
| UPC Code： | 1500 rpm |
| Shaft Size Type： | 1200 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 2-3/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVTU16V212SB QVVTU16V212SC QVVTU16V212SEB QVVTU16V212SEC QVVTU16V212SEM QVVTU16V212SEN QVVTU16V212SEO QVVTU16V212SET QVVTU16V212SM QVVTU16V212SN QVVTU16V212SO QVVTU16V212ST |
| Locking Style | Double V-Lock |
| Weight | 35 lb15.90 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450376808 0883450376815 0883450376822 0883450376839 0883450376846 0883450376853 0883450376860 0883450376877 0883450376884 0883450376891 0883450376907 0883450376914 |
| Dimension A | 3.00 in76.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 6.75 in171.5 mm |
| Dimension E | 5.94 in150.9 mm |
| Dimension F | 1.56 in39.6 mm |
| Dimension G | 1.56 in39.6 mm |
| Dimension J | 4.25 in108.0 mm |
| Dimension L | 8.65 in219.7 mm |
| Dimension N | 3.55 in90.2 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension RVV | 0.64 in16.3 mm |
| Dimension S | 1.810 in46.00 mm |
| Dimension T | 4.08 in103.6 mm |
| Dimension TVV | 4.18 in106.2 mm |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| C0 - Static Load | 62500 lb278 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.095 mm0.0037 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| K14x20x12 | K14x20x12 | 0.0095 | 24000 | 16000 | 14 | 20 |
| KR 62 PPA | 5.500 | 44.000 | 24.600 | 62.000 | KR 62 PPA | 24.000 |
| 7324B | 120 | 1.10 | 3.0 | 14.200 | 2800 | 2100 |
| 29420R | 67 | 100 | 3.0 | 1650 | 29420R | 200 |
| 23960E | 300 | 3.0 | 39.70 | 1200 | 1000 | 420 |
| 3MMC9115WI | 1 mm0.039 in | 1 mm0.039 in | 23760 rpm | 11880 rpm | 11.906250 mm15/32 in | METRIC |
| KV44x50x30.8XS | KV44x50x30.8XS | 0.067 | 9500 | 6500 | 44 | 50 |
| KT 405017 | 40 | KT 405017 | 56.5 | 40 | 50 | 30200 |
| 7418 CBM | 3800 | 6.55 | 193 | 212 | 7418 CBM | 90.000 |
| FLAWBC7-13ZZ | 7.0 | 0.15 | FLAWBC7-13ZZ | 1.40 | 45 000 | 38 000 |
