Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU19V304S

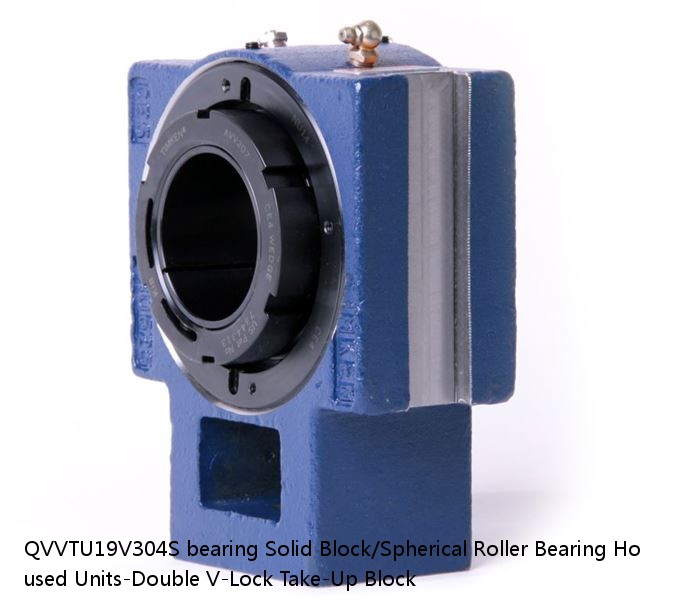

QVVTU19V304S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU19V304S PDF download| QVVTU19V304S interchange timken QVVTU19V304S | |
| QVVTU19V304S cross reference timken QVVTU19V304S | |
| QVVTU19V304S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVTU19V304S |
| d: | 4.29 |
| D: | 2.88 |
| B: | 44 lb20.00 Kg |
| r(min): | 0883450377645 0883450377652 0883450377669 0883450377676 0883450377683 0883450377690 0883450377706 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-1/4 in |
| Size: | Imperial |
| Weight： | 0.110 mm0.0043 in |
| Bearing Number： | 0.140 mm0.0055 in |
| Housing Construction： | 2200 rpm |
| UPC Code： | 1300 rpm |
| Shaft Size Type： | 1000 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 3-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVTU19V304SB QVVTU19V304SC QVVTU19V304SEB QVVTU19V304SEC QVVTU19V304SEM QVVTU19V304SEN QVVTU19V304SEO QVVTU19V304SET QVVTU19V304SM QVVTU19V304SN QVVTU19V304SO QVVTU19V304ST |
| Locking Style | Double V-Lock |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450377645 0883450377652 0883450377669 0883450377676 0883450377683 0883450377690 0883450377706 0883450377713 0883450377720 0883450377737 0883450377744 0883450377751 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension N | 3.92 in99.6 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension RVV | 0.71 in18.0 mm |
| Dimension S | 1.810 in46.00 mm |
| Dimension T | 4.49 in114.0 mm |
| Dimension TVV | 4.63 in117.6 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.110 mm0.0043 in |
| Pre Install Clearance Max | 0.140 mm0.0055 in |
