Double V-Lock Solid-Block Housed Units

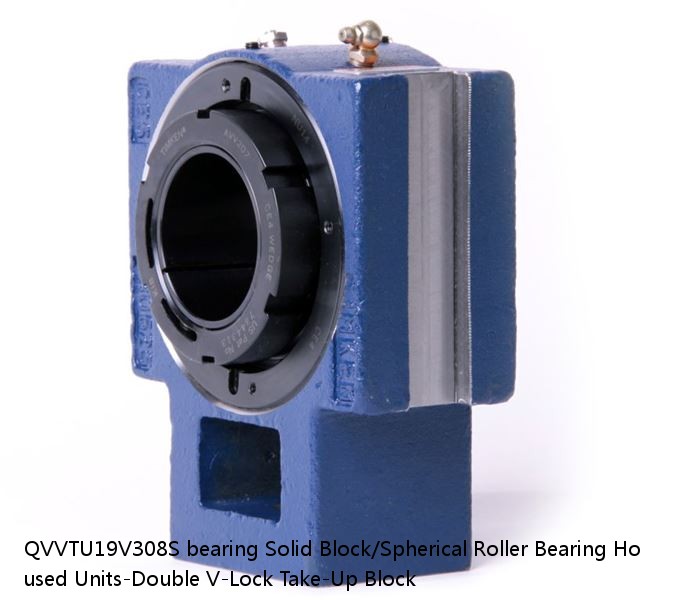

QVVTU19V308S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block

QVVTU19V308S interchange timken QVVTU19V308S
QVVTU19V308S cross reference timken QVVTU19V308S
QVVTU19V308S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	QVVTU19V308S
d:	4.29
D:	2.88
B:	44 lb20.00 Kg
r(min):	0883450377881 0883450377898 0883450377904 0883450377911 0883450377928 0883450377935 0883450377942 08
r1(min):	0.0030 in0.076 mm
Width:	3-1/2 in
Size:	Imperial
Weight：	0.110 mm0.0043 in
Bearing Number：	0.140 mm0.0055 in
Housing Construction：	2200 rpm
UPC Code：	1300 rpm
Shaft Size Type：	1000 rpm

Engineering Group	Mounted Bearing
Bearing Number	22219
Shaft Size	3-1/2 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVTU19V308SB QVVTU19V308SC QVVTU19V308SEB QVVTU19V308SEC QVVTU19V308SEM QVVTU19V308SEN QVVTU19V308SEO QVVTU19V308SET QVVTU19V308SM QVVTU19V308SN QVVTU19V308SO QVVTU19V308ST
Locking Style	Double V-Lock
Weight	44 lb20.00 Kg
Housing Construction	Take-Up
UPC Code	0883450377881 0883450377898 0883450377904 0883450377911 0883450377928 0883450377935 0883450377942 0883450377959 0883450377966 0883450377973 0883450377980 0883450377997
Dimension A	3.63 in92.2 mm
Dimension C	1.00 in25.4 mm
Dimension D	7.63 in193.8 mm
Dimension E	6.81 in173.0 mm
Dimension F	1.81 in46.0 mm
Dimension G	1.88 in47.8 mm
Dimension J	4.88 in124.0 mm
Dimension L	10.12 in257.0 mm
Dimension N	3.92 in99.6 mm
Dimension P	6.25 in158.8 mm
Dimension RVV	0.71 in18.0 mm
Dimension S	1.810 in46.00 mm
Dimension T	4.49 in114.0 mm
Dimension TVV	4.63 in117.6 mm
C - Dynamic Load (Basic)	86600 lb385 kN
C0 - Static Load	99000 lb441 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.88
Y2 - Geometry Factor	4.29
Oil Lubrication - M/N Seal	1300 rpm
Oil Lubrication - T Seal	2200 rpm
Oil Lubrication - B/C/O Seal	1000 rpm
Grease Lubrication - M/N Seal	1300 rpm
Grease Lubrication - T Seal	1800 rpm
Grease Lubrication - B/C/O Seal	950 rpm
Float	0.08 in2.11 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0043
Eng Internal Radial Clearance - Max	0.0055
Pre Install Clearance Min	0.110 mm0.0043 in
Pre Install Clearance Max	0.140 mm0.0055 in

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
NA6910A	50	0.6	NA6910A	7400	58	72
FR2-5ZZ	-	3.175	0.10	0.10	FR2-5ZZ	0.81
NUP308EW	Standard	40	1.5	1.5	1.5	1.5
2780/2726	1.98	23.777 mm0.9361 in	2700	3.3 mm0.130 in	1.520 mm0.06 in	1.93
F636ZZ	6.0	0.30	F636ZZ	34000	22	0.06
47490R/20	32.545	71.438	3.2	3.6	4200	3100
23284KYMBW906A	1.86	2.83	1.9	360	330	6.000 mm0.240 in
ZDS4P413-39	A-1/8NPT	ZDS4P413-39	2 7/16	-	-	-
CR 32VBR	162.0	22.225	-	4.762	4.762	37.306
NAF 659530	65	1.5	82.0	NAF 659530	790.0	75
