- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU19V307S

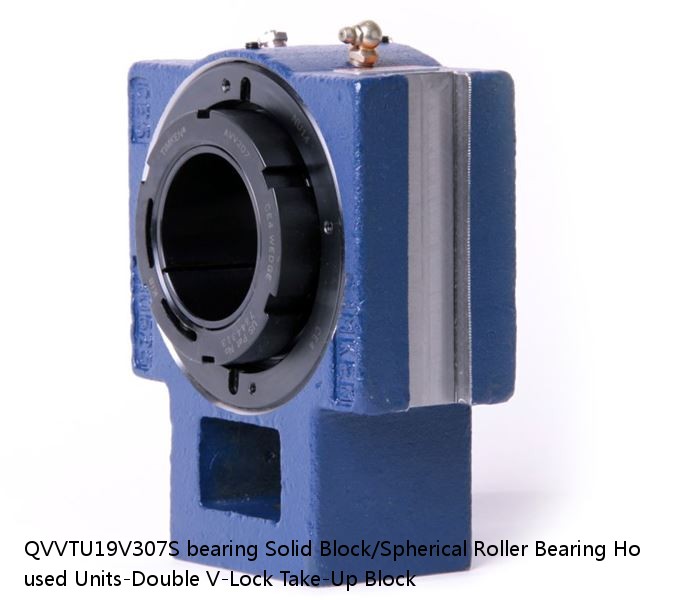

QVVTU19V307S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU19V307S interchange timken QVVTU19V307S | |
QVVTU19V307S cross reference timken QVVTU19V307S | |
QVVTU19V307S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | QVVTU19V307S |
d: | 4.29 |
D: | 2.88 |
B: | 44 lb20.00 Kg |
r(min): | 0883450377768 0883450377775 0883450377782 0883450377799 0883450377805 0883450377812 0883450377829 08 |
r1(min): | 0.0030 in0.076 mm |
Width: | 3-7/16 in |
Size: | Imperial |
Weight: | 0.110 mm0.0043 in |
Bearing Number: | 0.140 mm0.0055 in |
Housing Construction: | 2200 rpm |
UPC Code: | 1300 rpm |
Shaft Size Type: | 1000 rpm |
Engineering Group | Mounted Bearing |
Bearing Number | 22219 |
Shaft Size | 3-7/16 in |
Shaft Size Type | Imperial |
Full Timken Part Number | QVVTU19V307SB QVVTU19V307SC QVVTU19V307SEB QVVTU19V307SEC QVVTU19V307SEM QVVTU19V307SEN QVVTU19V307SEO QVVTU19V307SET QVVTU19V307SM QVVTU19V307SN QVVTU19V307SO QVVTU19V307ST |
Locking Style | Double V-Lock |
Weight | 44 lb20.00 Kg |
Housing Construction | Take-Up |
UPC Code | 0883450377768 0883450377775 0883450377782 0883450377799 0883450377805 0883450377812 0883450377829 0883450377836 0883450377843 0883450377850 0883450377867 0883450377874 |
Dimension A | 3.63 in92.2 mm |
Dimension C | 1.00 in25.4 mm |
Dimension D | 7.63 in193.8 mm |
Dimension E | 6.81 in173.0 mm |
Dimension F | 1.81 in46.0 mm |
Dimension G | 1.88 in47.8 mm |
Dimension J | 4.88 in124.0 mm |
Dimension L | 10.12 in257.0 mm |
Dimension N | 3.92 in99.6 mm |
Dimension P | 6.25 in158.8 mm |
Dimension RVV | 0.71 in18.0 mm |
Dimension S | 1.810 in46.00 mm |
Dimension T | 4.49 in114.0 mm |
Dimension TVV | 4.63 in117.6 mm |
C - Dynamic Load (Basic) | 86600 lb385 kN |
C0 - Static Load | 99000 lb441 kN |
e - Geometry Factor | 0.23 |
Y1 - Geometry Factor | 2.88 |
Y2 - Geometry Factor | 4.29 |
Oil Lubrication - M/N Seal | 1300 rpm |
Oil Lubrication - T Seal | 2200 rpm |
Oil Lubrication - B/C/O Seal | 1000 rpm |
Grease Lubrication - M/N Seal | 1300 rpm |
Grease Lubrication - T Seal | 1800 rpm |
Grease Lubrication - B/C/O Seal | 950 rpm |
Float | 0.08 in2.11 mm |
Shaft Tolerance | 0.0030 in0.076 mm |
Eng Internal Radial Clearance - Min | 0.0043 |
Eng Internal Radial Clearance - Max | 0.0055 |
Pre Install Clearance Min | 0.110 mm0.0043 in |
Pre Install Clearance Max | 0.140 mm0.0055 in |
